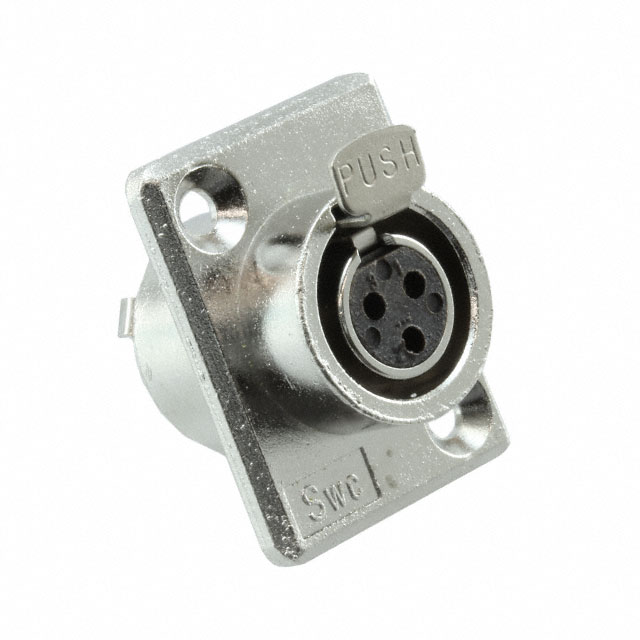

TY3F
Or copy the link below:
- Mfr.Part #
- TY3F
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG FMALE MINI XLR 3P SLDR
- Stock
- 284
- In Stock ：
- 284
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- REACH SVHC :
- No SVHC
- JESD-609 Code :
- e4
- Number of Positions :
- 3
- Shell Size - Insert :
- Mini XLR
- Feature :
- Ground
- Mount :
- Chassis, Flanges, Panel
- Gender :
- FEMALE
- Contact Finish - Mating :
- Silver
- Orientation :
- Keyed
- Body Material :
- Metal
- Length :
- 18.79mm
- Connector Type :
- Plug, Female Sockets
- Working Voltage :
- 125V
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mounting Type :
- Panel Mount
- Applications :
- Audio
- Contact Resistance :
- 10MOhm
- Factory Lead Time :
- 8 Weeks
- IEC Conformance :
- No
- Mounting Feature :
- Flange
- Lead Free :
- Lead Free
- Series :
- TINI Q-G® TY
- Published :
- 1998
- Max Current Rating :
- 5A
- Voltage - Rated AC :
- 125V
- Voltage - Rated DC :
- 125V
- Insulation Material :
- Thermoplastic
- Shell Material :
- Brass
- Width :
- 18.8mm
- Max Voltage Rating (AC) :
- 125V
- Number of Ports :
- 1
- Packaging :
- Bulk
- Operating Temperature :
- -55°C~85°C
- MIL Conformance :
- No
- Termination :
- Solder Cup
- Option :
- GENERAL PURPOSE
- Shell Finish :
- Nickel
- Fastening Type :
- Latch Lock
- Body/Shell Style :
- Receptacle
- Current Rating :
- 5A
- DIN Conformance :
- No
- Number of Poles :
- 3
- Additional Feature :
- POLARIZED
- Contact Material :
- BERYLLIUM COPPER
- Insert Material :
- Polyphenylene Sulfide (PPS)
- Datasheets
- TY3F
Plug, Female Sockets Brass Panel Mount 3 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock
TY3F Overview
The packaging contains Plug, Female Sockets.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number TINI Q-G® TY belongs to the TINI Q-G® TY Series.Further, there are features such as POLARIZED, to name only a few.In many ways, it is more powerful due to its Ground feature.There is a Chassis, Flanges, Panel mount on the part.This device operates at a temperature of -55°C~85°C.
TY3F Features
TINI Q-G® TY series
TY3F Applications
There are a lot of Switchcraft Inc.
TY3F Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
