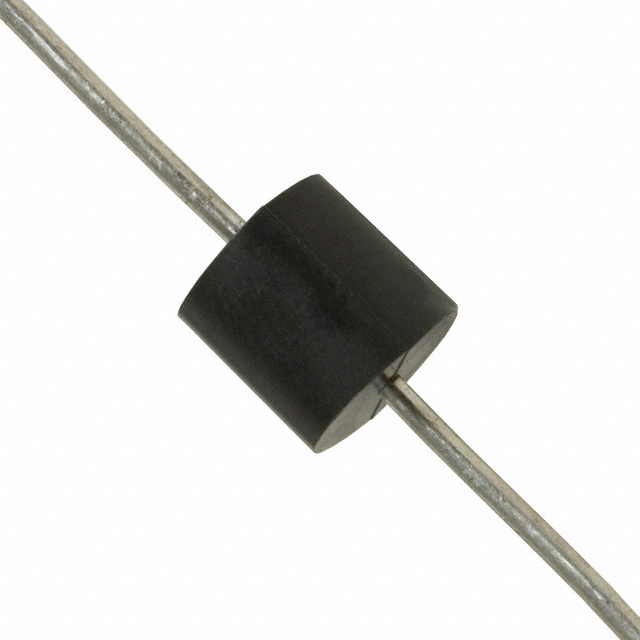

TP5KP36CA

Manufacturer :

Littelfuse

Product Category :

Voltage - Clamping (Max) @ Ipp :

58.1V

Number of Terminations :

2

JESD-30 Code :

O-PALF-W2

Bidirectional Channels :

1

Number of Elements :

1

Package / Case :

P600, Axial

Case Connection :

Isolated

Applications :

Automotive

Factory Lead Time :

18 Weeks

Packaging :

Tape and Reel (TR)

Power Line Protection :

No

Operating Temperature :

-55°C~150°C TJ

Published :

2016

Non-rep Peak Rev Power Dis-Max :

5000W

Rep Pk Reverse Voltage-Max :

36V

Mounting Type :

Through Hole

Power Dissipation-Max :

8W

Additional Feature :

EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED

Terminal Form :

Wire

Configuration :

Single

Diode Element Material :

SILICON

Voltage - Reverse Standoff (Typ) :

36V

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Zener

Current - Peak Pulse (10/1000μs) :

87.8A

Polarity :

Bidirectional

ECCN Code :

EAR99

Power - Peak Pulse :

5000W 5kW

Series :

Automotive, AEC-Q101, TP5KP

Surface Mount :

No

Voltage - Breakdown (Min) :

40V
