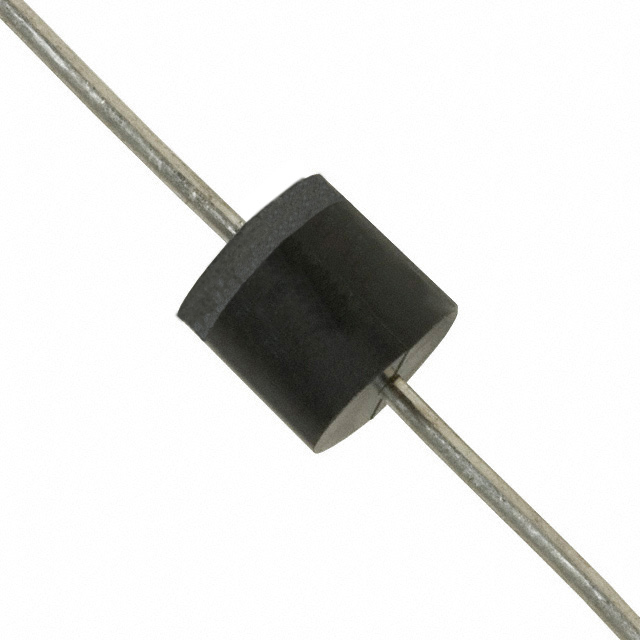

TP5KP20A

Manufacturer :

Littelfuse

Product Category :

Unidirectional Channels :

1

Rep Pk Reverse Voltage-Max :

20V

Additional Feature :

EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED

Terminal Form :

Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

Single

Voltage - Breakdown (Min) :

22.2V

Diode Element Material :

SILICON

Case Connection :

Isolated

Power Line Protection :

No

Package / Case :

P600, Axial

Non-rep Peak Rev Power Dis-Max :

5000W

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

JESD-30 Code :

O-PALF-W2

Operating Temperature :

-55°C~150°C TJ

Current - Peak Pulse (10/1000μs) :

157.4A

Voltage - Clamping (Max) @ Ipp :

32.4V

Type :

Zener

Mounting Type :

Through Hole

Voltage - Reverse Standoff (Typ) :

20V

Power - Peak Pulse :

5000W 5kW

Published :

2016

Series :

Automotive, AEC-Q101, TP5KP

Number of Terminations :

2

Applications :

Automotive

Number of Elements :

1

Polarity :

Unidirectional

Surface Mount :

No

ECCN Code :

EAR99

Factory Lead Time :

18 Weeks

Power Dissipation-Max :

8W
