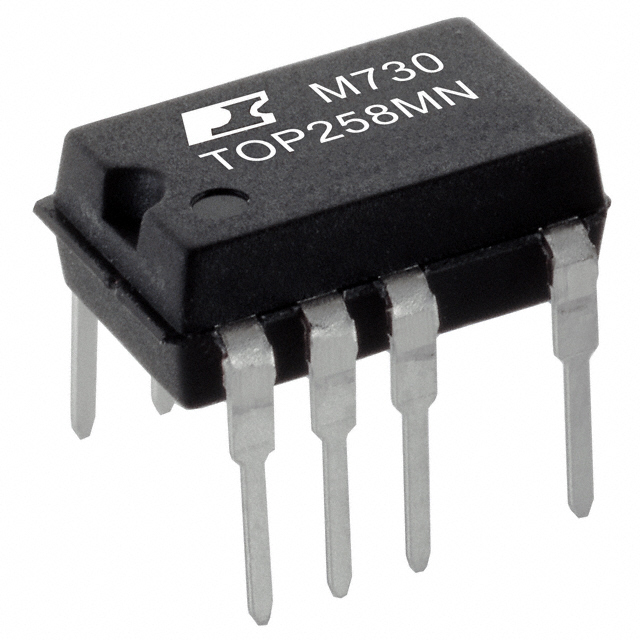

TOP258MN

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Height :

3.68mm

Control Mode :

VOLTAGE-MODE

RoHS Status :

RoHS Compliant

Number of Terminations :

9

Operating Temperature :

-40°C~150°C TJ

Terminal Position :

Dual

Internal Switch(s) :

yes

Mounting Type :

Through Hole

Length :

9.83mm

Terminal Pitch :

1.78mm

Series :

TOPSwitch®-HX

Packaging :

Tube

Package / Case :

10-SDIP (0.300, 7.62mm), 9 Leads

Number of Pins :

9

Radiation Hardening :

No

Max Supply Voltage :

9V

Terminal Finish :

Pure Matte Tin (Sn)

Frequency - Switching :

66kHz

Topology :

Flyback

Analog IC - Other Type :

ANALOG CIRCUIT

Output Current :

6.88A

Max Power Dissipation :

140W

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

Width :

6.6mm

Factory Lead Time :

4 Weeks

Voltage - Breakdown :

700V

Mount :

Through Hole

Max Duty Cycle :

78 %

Output Power :

48W

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Isolation :

Isolated

Output Voltage :

700V

Min Supply Voltage :

-300mV

Number of Functions :

1

Power Rating :

140W
