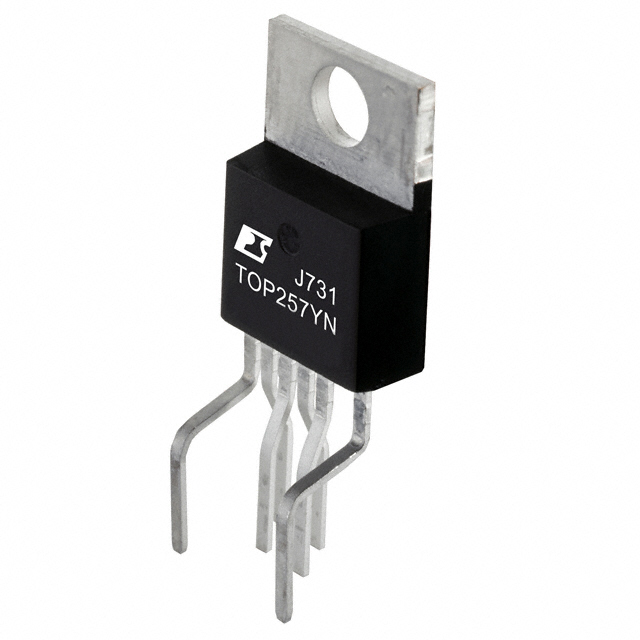

TOP257YN

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Number of Terminations :

6

Output Power :

157W

Terminal Pitch :

1.27mm

Topology :

Flyback

Number of Functions :

1

RoHS Status :

RoHS Compliant

Max Supply Voltage :

9V

Radiation Hardening :

No

Output Isolation :

Isolated

Mounting Type :

Through Hole

Voltage - Breakdown :

700V

Factory Lead Time :

4 Weeks

Number of Pins :

6

Max Power Dissipation :

157W

Frequency - Switching :

66kHz 132kHz

HTS Code :

8542.39.00.01

Package / Case :

TO-220-7 (Formed Leads), 6 Leads

Internal Switch(s) :

yes

Control Mode :

VOLTAGE-MODE

Output Current :

5.44A

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

JESD-609 Code :

e3

Series :

TOPSwitch®-HX

Analog IC - Other Type :

ANALOG CIRCUIT

Published :

2008

Packaging :

Tube

Terminal Position :

Single

Max Duty Cycle :

78 %

Terminal Finish :

PURE MATTE TIN

Min Supply Voltage :

-300mV

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Voltage :

700V

Mount :

Through Hole

Operating Temperature :

-40°C~150°C TJ
