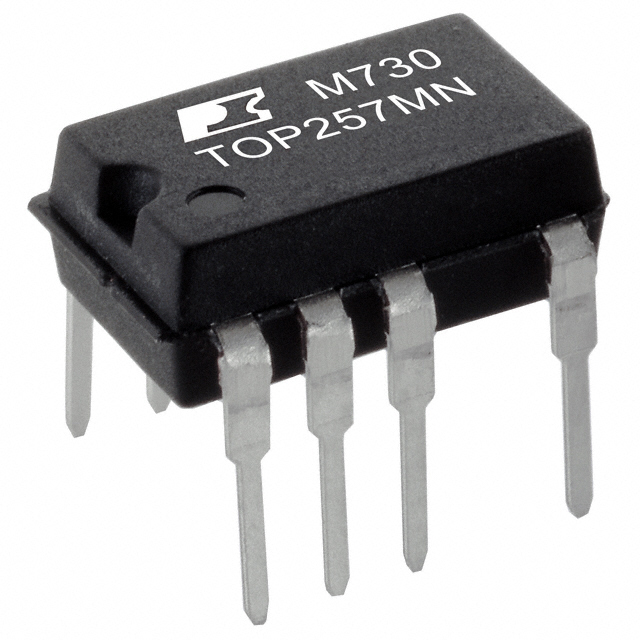

TOP257MN

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Internal Switch(s) :

yes

Output Power :

78W

Number of Terminations :

9

Operating Temperature :

-40°C~150°C TJ

Terminal Position :

Dual

Number of Outputs :

1

JESD-30 Code :

R-PDIP-T9

Nominal Supply Current :

1.4mA

Series :

TOPSwitch®-HX

Number of Pins :

10

Power Rating :

119W

Number of Functions :

1

Output Isolation :

Isolated

Frequency :

66kHz

Power (Watts) :

41W

Mount :

Through Hole

Width :

6.6mm

Packaging :

Tube

Factory Lead Time :

4 Weeks

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Output Current :

5.44A

REACH SVHC :

No SVHC

RoHS Status :

RoHS Compliant

Control Mode :

VOLTAGE-MODE

Duty Cycle :

78%

Termination :

Through Hole

Voltage - Breakdown :

700V

Length :

9.83mm

Output Voltage :

12V

Max Duty Cycle :

83 %

Topology :

Flyback

Package / Case :

10-SDIP (0.300, 7.62mm), 9 Leads

Min Supply Voltage (AC) :

85V

Analog IC - Other Type :

ANALOG CIRCUIT

Height :

3.68mm

Max Power Dissipation :

119W

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

Terminal Finish :

Pure Matte Tin (Sn)

Min Supply Voltage :

36V

Max Supply Voltage (AC) :

265V

Mounting Type :

Through Hole

Max Input Voltage (AC) :

265V
