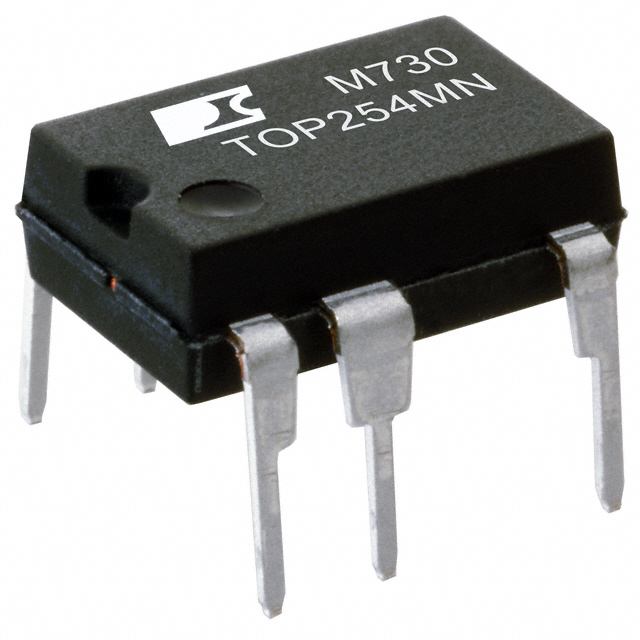

TOP254MN

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

Factory Lead Time :

4 Weeks

Output Power :

28W

Output Isolation :

Isolated

Max Duty Cycle :

78 %

Topology :

Flyback

Surface Mount :

No

Height Seated (Max) :

5.08mm

Terminal Pitch :

1.78mm

Internal Switch(s) :

yes

Max Supply Voltage :

9V

Radiation Hardening :

No

Series :

TOPSwitch®-HX

Frequency - Switching :

66kHz

Width :

7.62mm

Terminal Finish :

Pure Matte Tin (Sn)

Analog IC - Other Type :

ANALOG CIRCUIT

Number of Pins :

9

Packaging :

Tube

RoHS Status :

RoHS Compliant

Number of Functions :

1

Terminal Position :

Dual

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

10-SDIP (0.300, 7.62mm), 9 Leads

Control Mode :

VOLTAGE-MODE

Min Supply Voltage :

-300mV

Published :

2009

Operating Temperature :

-40°C~150°C TJ

Voltage - Breakdown :

700V

Number of Terminations :

9

Mounting Type :

Through Hole

Max Power Dissipation :

62W

Output Voltage :

700V

Output Current :

2.08A
