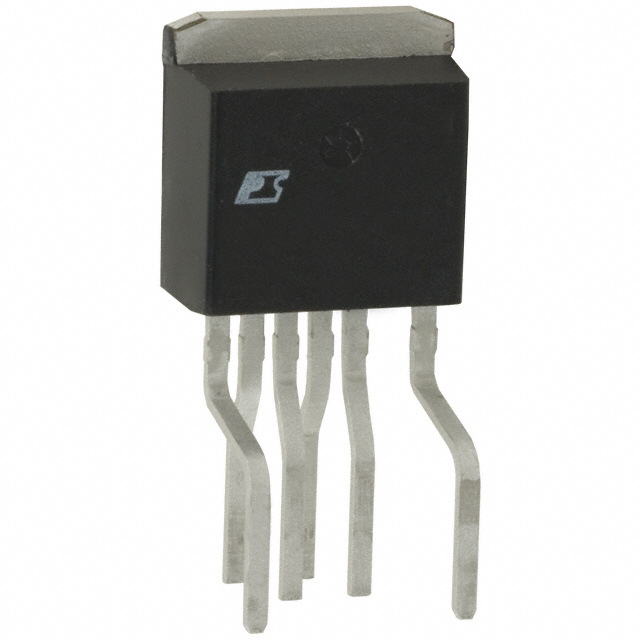

TOP243F

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Operating Temperature :

-40°C~150°C TJ

Terminal Pitch :

1.27mm

Internal Switch(s) :

yes

Switcher Configuration :

Single

Terminal Position :

Zig-Zag

Package / Case :

TO-262-7 (Formed Leads), 6 Leads

Mounting Type :

Through Hole

JESD-30 Code :

R-PZIP-T6

JESD-609 Code :

e0

Number of Functions :

1

Terminal Finish :

TIN LEAD

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pin Count :

3

RoHS Status :

Non-RoHS Compliant

Series :

TOPSwitch®-GX

Additional Feature :

REQUIRES AN AC SUPPLY OF 85 TO 265 V

Duty Cycle :

66.5%

Length :

10.29mm

Surface Mount :

No

Width :

4.435mm

HTS Code :

8542.39.00.01

Control Mode :

VOLTAGE-MODE

Packaging :

Bulk

Pbfree Code :

No

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Frequency - Switching :

66kHz~132kHz

Analog IC - Other Type :

SWITCHING REGULATOR

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

Qualification Status :

Not Qualified

Control Technique :

PULSE WIDTH MODULATION

Output Current-Max :

1.44A

Number of Terminations :

6

Control Features :

Frequency Control

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Topology :

Flyback

Max Power Dissipation :

45W

Output Isolation :

Isolated

Voltage - Breakdown :

700V
