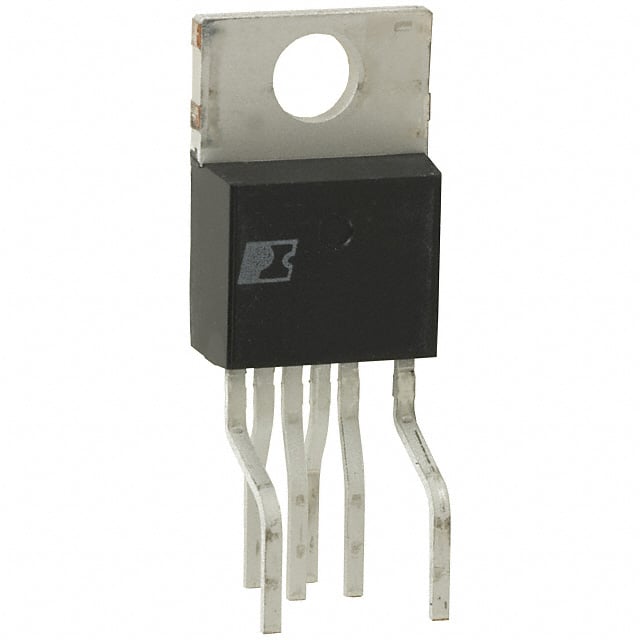

TOP242YN

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Mounting Type :

Through Hole

Frequency - Switching :

66kHz~132kHz

Terminal Finish :

PURE MATTE TIN

Max Power Dissipation :

22W

Analog IC - Other Type :

SWITCHING REGULATOR

Internal Switch(s) :

yes

Lead Free :

Lead Free

Pin Count :

3

Max Supply Voltage (AC) :

265V

Output Type :

Adjustable

Series :

TOPSwitch®-GX

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Breakdown :

700V

Min Supply Voltage (AC) :

85V

Duty Cycle :

66.5%

Output Isolation :

Isolated

Number of Functions :

1

Number of Outputs :

1

Surface Mount :

No

Published :

2005

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

Packaging :

Tube

Output Current-Max :

0.72A

Control Technique :

PULSE WIDTH MODULATION

Control Mode :

VOLTAGE-MODE

ECCN Code :

EAR99

Max Duty Cycle :

83 %

Switcher Configuration :

Single

JESD-609 Code :

e3

JESD-30 Code :

R-PZFM-T6

Control Features :

Frequency Control

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Terminal Position :

Zig-Zag

Operating Temperature :

-40°C~150°C TJ

Radiation Hardening :

No

Topology :

Flyback

Output Voltage :

12V

Factory Lead Time :

6 Weeks

Package / Case :

TO-220-7 (Formed Leads), 6 Leads

Number of Terminations :

6

Nominal Supply Current :

1.6mA
