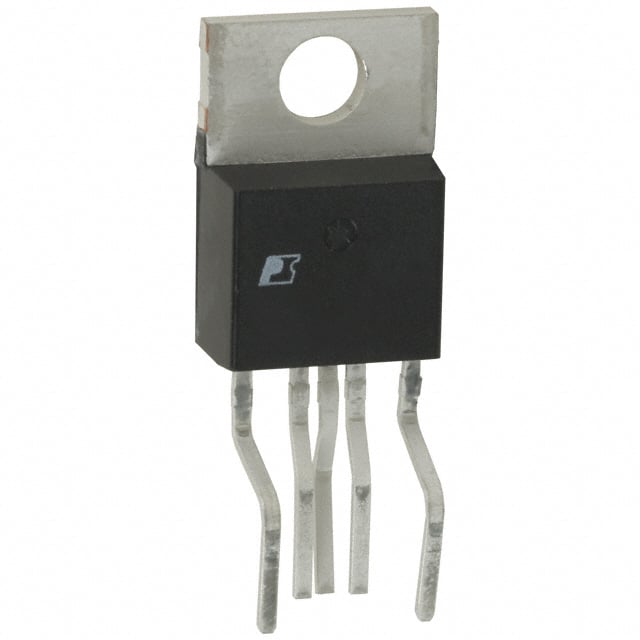

TOP234YN

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Topology :

Flyback

Output Voltage :

700V

Series :

TOPSwitch®-FX

JESD-30 Code :

R-PZFM-T5

Fault Protection :

Current Limiting, Over Temperature, Over Voltage

Nominal Supply Current :

1.5mA

Packaging :

Tube

ECCN Code :

EAR99

Terminal Finish :

Matte Tin (Sn)

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Output Current :

2.4A

JESD-609 Code :

e3

Max Supply Voltage (AC) :

265V

Switcher Configuration :

Single

Control Mode :

VOLTAGE-MODE

Max Power Dissipation :

75W

Number of Terminations :

5

Min Supply Voltage (AC) :

85V

Control Technique :

PULSE WIDTH MODULATION

Mounting Type :

Through Hole

RoHS Status :

RoHS Compliant

Published :

2001

Pin Count :

3

Number of Pins :

7

Power (Watts) :

75W

Frequency - Switching :

66kHz~132kHz

Drain to Source Resistance :

5.2Ohm

Mount :

Through Hole

Number of Outputs :

1

Terminal Position :

Zig-Zag

Control Features :

Frequency Control

REACH SVHC :

No SVHC

Output Isolation :

Isolated

Package / Case :

TO-220-7 (Formed Leads), 5 Leads

Max Duty Cycle :

78 %

Internal Switch(s) :

yes

Operating Temperature :

-40°C~150°C TJ

Number of Functions :

1

Analog IC - Other Type :

SWITCHING REGULATOR

Frequency :

132kHz
