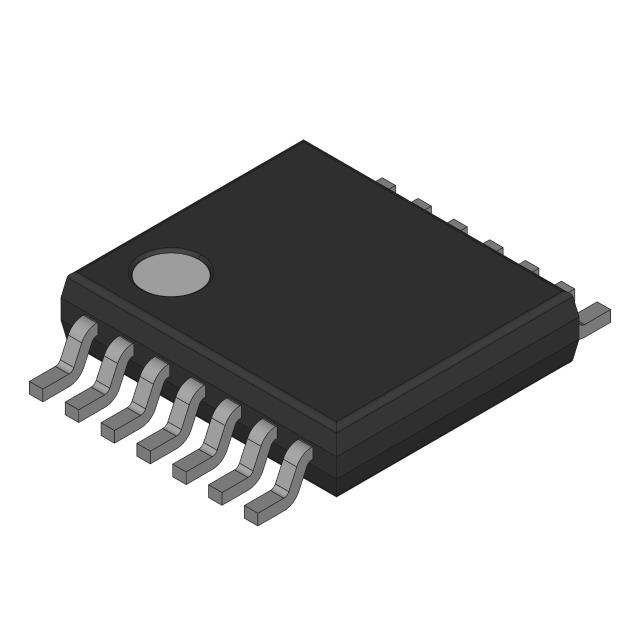

TLE6217GAUMA1

Manufacturer :

International Rectifier

Product Category :

Power Distribution Switches, Load Drivers

Pin Count :

20

Interface :

On/Off

Published :

2003

Rds On (Typ) :

200m Ω, 350m Ω

Number of Functions :

4

Output Type :

N-Channel

JESD-609 Code :

e3

Output Peak Current Limit-Nom :

7.5A

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Lead Free :

Contains Lead

Output Configuration :

Low Side

Terminal Finish :

Tin (Sn)

Number of Terminations :

20

RoHS Status :

Non-RoHS Compliant

Base Part Number :

TLE6217

Pbfree Code :

No

Halogen Free :

Halogen Free

Built-in Protections :

OVER CURRENT; OVER VOLTAGE; THERMAL

Number of Pins :

20

Input Type :

Non-Inverting

Package / Case :

20-PowerSOIC (0.433, 11.00mm Width)

Number of Outputs :

4

Ratio - Input:Output :

1:1

Output Current :

3A

Operating Temperature :

-40°C~150°C TJ

Turn Off Time :

30 µs

Terminal Position :

Dual

Mounting Type :

Surface Mount

Length :

15.9mm

Radiation Hardening :

No

Max Output Current :

5A

Voltage - Load :

4.8V~32V

Mount :

Surface Mount

Voltage - Supply (Vcc/Vdd) :

Not Required

Width :

11mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Fault Protection :

Open Load Detect, Over Temperature, Over Voltage

Terminal Form :

Gull wing

Current - Output (Max) :

3A 5A

Switch Type :

GENERAL PURPOSE

Terminal Pitch :

1.27mm

Factory Lead Time :

15 Weeks

Nominal Supply Current :

8mA

Min Dual Supply Voltage :

45V
