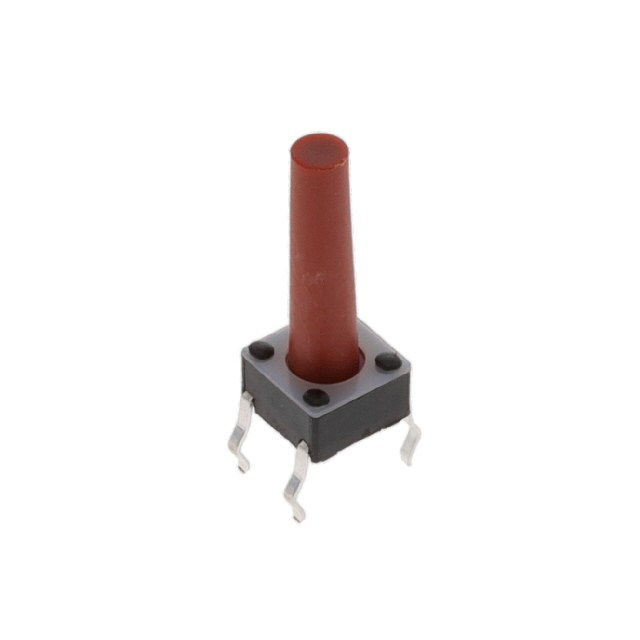

TL1105YF100Q
Or copy the link below:
- Mfr.Part #
- TL1105YF100Q
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 24
- In Stock ：
- 24
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- PCB Hole Count :
- 4
- Current Rating :
- 50mA
- Packaging :
- Bulk
- Outline :
- 6.00mm x 6.00mm
- RoHS Status :
- ROHS3 Compliant
- Actuator Orientation :
- Top Actuated
- Factory Lead Time :
- 10 Weeks
- Operating Temperature :
- -20°C~70°C
- Insulation Resistance :
- 100000000Ohm
- Body Length or Diameter :
- 5.9944mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Actuator Type :
- Standard
- Contact Resistance :
- 0.1mOhm
- Throw Configuration :
- SPST
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Actuator Height off PCB, Vertical :
- 16.30mm
- Contact Current(DC)-Max :
- 0.05A
- Switch Function :
- Off-Mom
- Operating Force :
- 100gf
- Mechanical Life :
- 100,000 Cycles
- Termination Style :
- PC Pin
- Mount :
- Through Hole
- Actuator Color :
- Brown
- Contact (DC) Max Rating R Load :
- 0.05A@12VDC
- Mounting Type :
- Through Hole
- Voltage - Rated DC :
- 12V
- Published :
- 2006
- Body Breadth :
- 5.9944 mm
- Body Height :
- 3.6068mm
- Dielectric Withstanding Voltage :
- 250VAC V
- Electrical Life :
- 100000 Cycle(s)
- Lead Free :
- Lead Free
- Circuit :
- SPST-NO
- Termination :
- PC Pin
- Length - Termination :
- 0.138 inch
- Illumination :
- Non-Illuminated
- Contact Material :
- Silver
- Actuator Material :
- Polyamide (PA), Nylon
- Actuator Length :
- 0.5 inch
- Switch Type :
- KEYPAD SWITCH
- Series :
- TL1105
- Switch Travel :
- 0.25mm
- Datasheets
- TL1105YF100Q
TL1105YF100Q datasheet pdf and Tactile Switches product details from E-Switch stock available at
