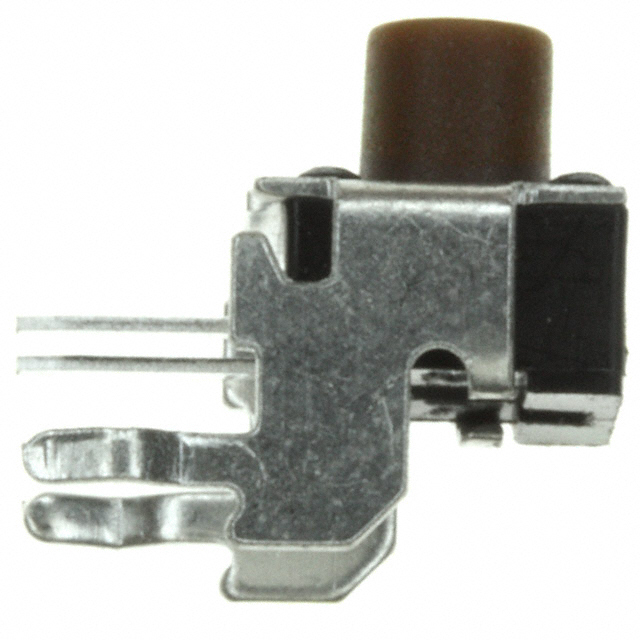

TL1105XF100Q
Or copy the link below:
- Mfr.Part #
- TL1105XF100Q
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 3,603
- In Stock ：
- 3,603
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- JESD-609 Code :
- e4
- Actuator Material :
- Polyamide (PA), Nylon
- Voltage - Rated DC :
- 12V
- Termination Style :
- PC Pin
- Contact Current(DC)-Max :
- 0.05A
- Body Length or Diameter :
- 7.1mm
- Actuator Orientation :
- Side Actuated
- Body Breadth :
- 6.55 mm
- Switch Travel :
- 0.25mm
- Series :
- TL1105
- Mount :
- Through Hole
- Illumination :
- Non-Illuminated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Throw Configuration :
- SPST
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Termination :
- PC Pin
- Operating Temperature :
- -20°C~70°C
- Actuator Type :
- Standard
- Switch Function :
- Off-Mom
- HTS Code :
- 8536.50.90.40
- Packaging :
- Bulk
- Actuator Length, Right Angle :
- 5.85mm
- Current Rating :
- 50mA
- Contact Plating :
- Silver
- Body Height :
- 7mm
- Operating Force :
- 100gf
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- RoHS Status :
- ROHS3 Compliant
- Electrical Life :
- 100000 Cycle(s)
- Mechanical Life :
- 100,000 Cycles
- ECCN Code :
- EAR99
- Number of Switches :
- 1
- Circuit :
- SPST-NO
- Mounting Type :
- Through Hole, Right Angle
- Outline :
- 7.10mm x 6.55mm
- Switch Type :
- KEYPAD SWITCH
- Factory Lead Time :
- 11 Weeks
- Published :
- 2006
- Lead Free :
- Lead Free
- Datasheets
- TL1105XF100Q
TL1105XF100Q Documents
TL1105XF100Q datasheet pdf and Tactile Switches product details from E-Switch stock available at
