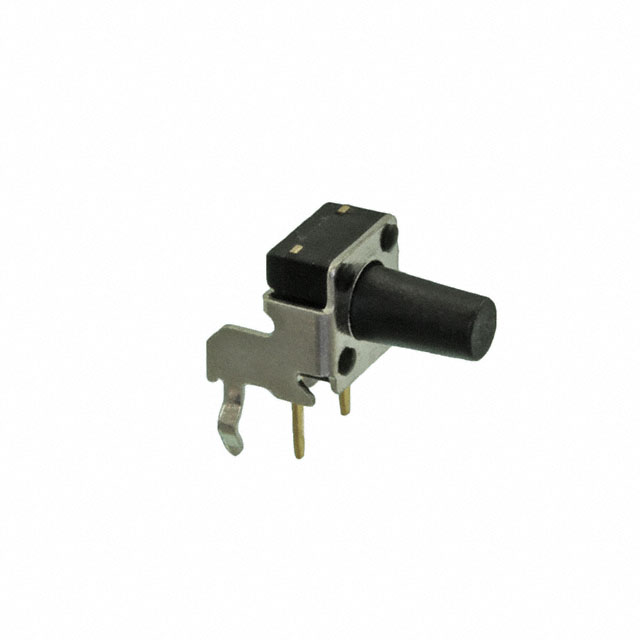

TL1105SF160R
Or copy the link below:
- Mfr.Part #
- TL1105SF160R
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 50V
- Stock
- 4,380
- In Stock ：
- 4,380
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 50V
- Series :
- TL1105
- Packaging :
- Bulk
- Throw Configuration :
- SPST
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 50mA
- Published :
- 2008
- Body Height :
- 7mm
- Outline :
- 7.10mm x 6.55mm
- Number of Switches :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact (DC) Max Rating R Load :
- .05A@50VDC
- Contact Plating :
- Gold
- Contact Material :
- Bronze, Gold
- Body Length or Diameter :
- 7.1mm
- Mount :
- Through Hole
- Housing Material :
- Nylon
- HTS Code :
- 8536.50.90.40
- Actuator Orientation :
- Side Actuated
- Max Voltage Rating (DC) :
- 50V
- Contact Rating @ Voltage :
- 0.05A @ 50VDC
- Switch Type :
- KEYPAD SWITCH
- Termination Style :
- PC Pin
- Termination :
- PC Pin
- Lead Free :
- Lead Free
- Circuit :
- SPST-NO
- Factory Lead Time :
- 8 Weeks
- Contact Current(DC)-Max :
- 0.05A
- Actuator Length :
- 5.8mm
- Illumination :
- Non-Illuminated
- Mounting Type :
- Through Hole, Right Angle
- ECCN Code :
- EAR99
- Electrical Life :
- 100000 cycles
- Actuator Type :
- Standard
- Switch Travel :
- 0.25mm
- Operating Force :
- 160gf
- Operating Temperature :
- -20°C~70°C
- Mechanical Life :
- 100,000 Cycles
- Switch Function :
- Off-Mom
- Body Breadth :
- 6.55 mm
- Actuator Material :
- Polyamide (PA), Nylon
- Actuator Length, Right Angle :
- 8.35mm
- Contact Resistance :
- 100MOhm
- Datasheets
- TL1105SF160R
