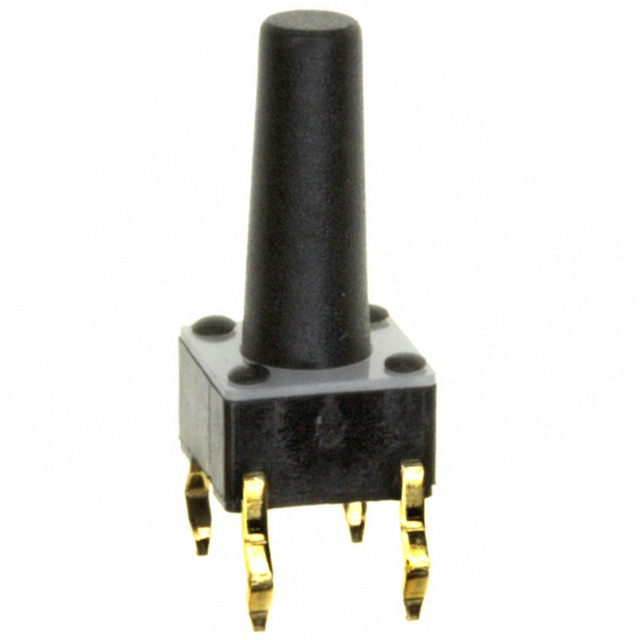

TL1105DF160R
Or copy the link below:
- Mfr.Part #
- TL1105DF160R
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 50V
- Stock
- 13,604
- In Stock ：
- 13,604
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Termination Style :
- PC Pin
- Current Rating :
- 50mA
- Contact Material :
- Bronze, Gold
- Actuator Height off PCB, Vertical :
- 13.00mm
- Mechanical Life :
- 100,000 Cycles
- Illumination :
- Non-Illuminated
- Packaging :
- Bulk
- Published :
- 2002
- Mount :
- Through Hole
- Contact Rating @ Voltage :
- 0.05A @ 50VDC
- Termination :
- PC Pin
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- Straight
- Switch Function :
- Off-Mom
- Housing Material :
- Nylon
- Switch Type :
- KEYPAD SWITCH
- Actuator Material :
- Polyamide (PA), Nylon
- ECCN Code :
- EAR99
- Switch Travel :
- 0.25mm
- Throw Configuration :
- SPST
- Circuit :
- SPST-NO
- Max Voltage Rating (DC) :
- 50V
- Operating Force :
- 160gf
- Lead Free :
- Lead Free
- Contact Resistance :
- 100MOhm
- Outline :
- 6.00mm x 6.00mm
- Actuator Orientation :
- Top Actuated
- Operating Temperature :
- -20°C~70°C
- Factory Lead Time :
- 8 Weeks
- Electrical Life :
- 100000 cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- TL1105
- Mounting Type :
- Through Hole
- Actuator Type :
- Standard
- Voltage - Rated DC :
- 12V
- Actuator Length :
- 9.4mm
- Datasheets
- TL1105DF160R
TL1105DF160R Documents
TL1105DF160R datasheet pdf and Tactile Switches product details from E-Switch stock available at
