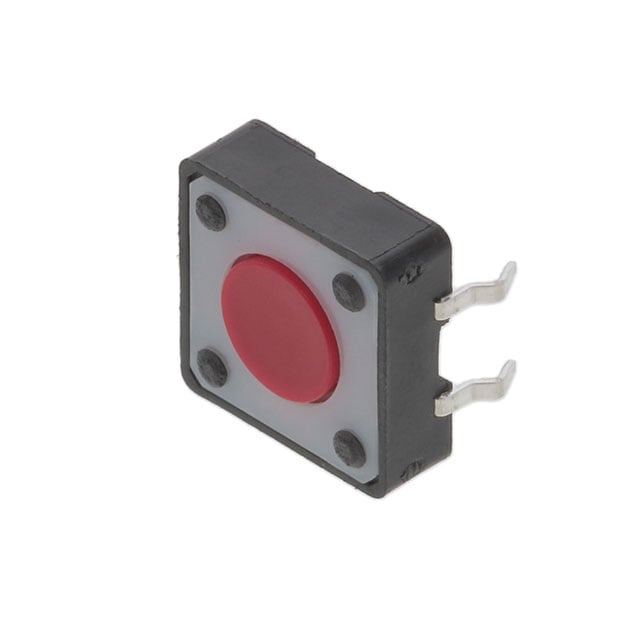

TL1100DF260Q

Manufacturer :

E-Switch

Product Category :

Termination :

PC Pin

Actuator Orientation :

Top Actuated

Center Contact Plating :

Silver

Contact Resistance :

0.1mOhm

Contact Rating @ Voltage :

0.05A @ 12VDC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mechanical Life :

100,000 Cycles

Operating Temperature :

-20°C~70°C

Throw Configuration :

SPST

Packaging :

Bulk

Dielectric Withstanding Voltage :

250VAC V

Mount :

Through Hole

Actuator Length :

0.02 inch

Housing Material :

POLYBUTYLENE TEREPHTHALATE

Circuit :

SPST-NO

Contact (DC) Max Rating R Load :

0.05A@12VDC

End Contact Plating :

Silver

Electrical Life :

100000 Cycle(s)

Body Length or Diameter :

11.9888mm

Illumination :

Non-Illuminated

Operating Force :

260gf

RoHS Status :

ROHS3 Compliant

Body Breadth :

11.9888 mm

Actuator Type :

Standard

Switch Travel :

0.30mm

Body Height :

3.7846mm

PCB Hole Count :

4

Feature :

Tactile Feedback

Length - Termination :

0.138 inch

Outline :

12.00mm x 12.00mm

Terminal Material :

COPPER ALLOY

Voltage - Rated DC :

12V

Actuator Material :

Polyester

Center Contact Material :

Phosphor Bronze

Factory Lead Time :

11 Weeks

Series :

TL1100

Insulation Resistance :

100000000Ohm

Mounting Type :

Through Hole

Switch Function :

Off-Mom

Switch Type :

KEYPAD SWITCH

Published :

2002

Termination Style :

PC Pin

Actuator Height off PCB, Vertical :

4.30mm

ECCN Code :

EAR99

End Contact Material :

Phosphor Bronze

Contact Current(DC)-Max :

0.05A

Current Rating :

50mA
