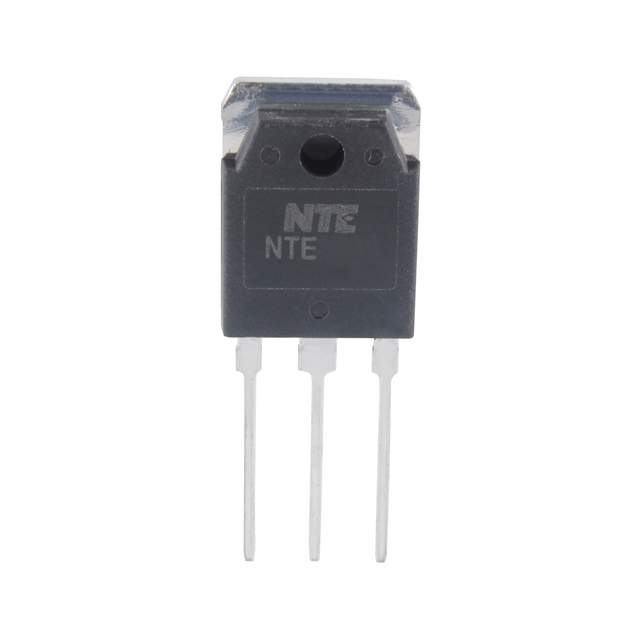

TIP2955
Or copy the link below:
- Mfr.Part #
- TIP2955
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-247-3
- Datasheet
- Download
- Description
- TRANS PNP 100V 15A TO218
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Length :
- 15.75mm
- Transistor Application :
- SWITCHING
- Max Collector Current :
- 15A
- Transistor Type :
- PNP
- Number of Terminations :
- 3
- Number of Pins :
- 3
- Height :
- 20.15mm
- Operating Temperature :
- 150°C TJ
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Max Power Dissipation :
- 90W
- Weight :
- 9.071847g
- Mount :
- Through Hole
- Factory Lead Time :
- 8 Weeks
- Lead Free :
- Lead Free
- Current Rating :
- -15A
- Pin Count :
- 3
- Power Dissipation :
- 90W
- Collector Emitter Voltage (VCEO) :
- 60V
- JEDEC-95 Code :
- TO-247AD
- RoHS Status :
- ROHS3 Compliant
- Current - Collector Cutoff (Max) :
- 700µA
- Element Configuration :
- Single
- Frequency :
- 3MHz
- Vce Saturation (Max) @ Ib, Ic :
- 3V @ 3.3A, 10A
- Radiation Hardening :
- No
- Mounting Type :
- Through Hole
- Polarity/Channel Type :
- PNP
- Transistor Element Material :
- SILICON
- Terminal Finish :
- Tin (Sn)
- Gain Bandwidth Product :
- 3MHz
- Voltage - Rated DC :
- -100V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Collector Emitter Saturation Voltage :
- 1V
- VCEsat-Max :
- 3 V
- REACH SVHC :
- No SVHC
- Collector Base Voltage (VCBO) :
- 100V
- Base Part Number :
- TIP2955
- Number of Elements :
- 1
- Width :
- 5.15mm
- JESD-609 Code :
- e3
- Emitter Base Voltage (VEBO) :
- 7V
- ECCN Code :
- EAR99
- Packaging :
- Tube
- Package / Case :
- TO-247-3
- Collector Emitter Breakdown Voltage :
- 60V
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 20 @ 4A 4V
- hFE Min :
- 20
- Transition Frequency :
- 3MHz
- Datasheets
- TIP2955
TIP2955 Documents
PNP 150°C TJ 700μA 1 Elements 3 Terminations SILICON PNP TO-247-3 Tube Through Hole
TIP2955 Overview
DC current gain' is equal to the ratio of the collector current to the base current, something like Ic/Ib, and this device has 20 @ 4A 4V DC current gain.As it features a collector emitter saturation voltage of 1V, it allows for maximum design flexibility.VCE saturation indicates Ic is at maximum level (saturated), whereas vce saturation (Max) indicates there is no saturation.Keeping the emitter base voltage at 7V can result in a high level of efficiency.According to definition, current rating describes the maximum current a fuse can carry indefinitely without deteriorating too much, and this device has no current rating.There is a transition frequency of 3MHz in the part.When collector current reaches its maximum, it can reach 15A volts.
TIP2955 Features
the DC current gain for this device is 20 @ 4A 4V
a collector emitter saturation voltage of 1V
the vce saturation(Max) is 3V @ 3.3A, 10A
the emitter base voltage is kept at 7V
the current rating of this device is -15A
a transition frequency of 3MHz
TIP2955 Applications
There are a lot of STMicroelectronics
TIP2955 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
