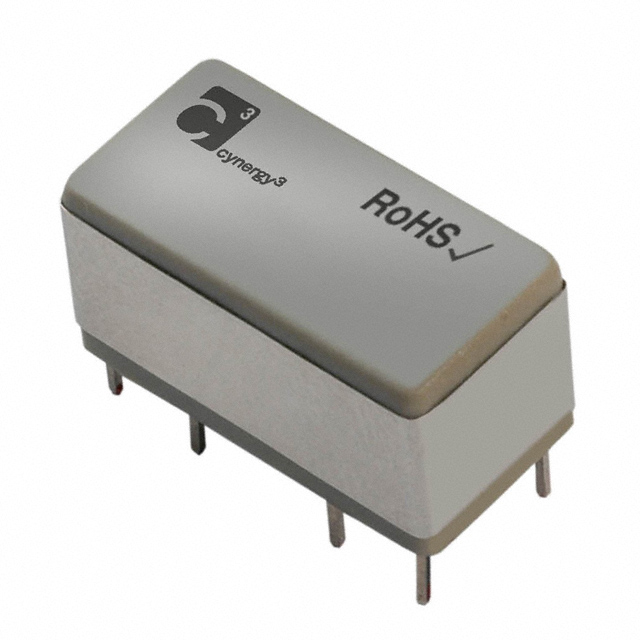

TBR212SM

Manufacturer :

Sensata Technologies – Cynergy3

Product Category :

Reed Relays

Features :

Military, Moisture Resistant, Weldable

Release Time :

0.5 ms

Seal Rating :

-

Coil Type :

Non Latching

Switching Voltage :

300VAC, 300VDC - Max

Must Operate Voltage :

8 VDC

Operating Temperature :

-65°C ~ 175°C

Termination Style :

PC Pin

Must Release Voltage :

2 VDC

Mounting Type :

Through Hole

Product Status :

Active

Series :

Military, MIL-PRF-55182/07, RNC50

Supplier Device Package :

Axial

Contact Form :

SPST-NC (1 Form B)

Number of Terminations :

2

Height - Seated (Max) :

--

Power (Watts) :

0.1W, 1/10W

Package / Case :

Axial

Failure Rate :

S (0.001%)

Temperature Coefficient :

±50ppm/°C

Package :

Bulk

Coil Resistance :

900 Ohms

Contact Rating (Current) :

500 mA

Packaging :

Tape and Reel (TR)

Resistance :

876 Ohms

Composition :

Metal Film

Operate Time :

1 ms

Coil Voltage :

12VDC

Coil Current :

13.3 mA

Size / Dimension :

0.070 Dia x 0.150 L (1.78mm x 3.81mm)

Tolerance :

±0.1%

Contact Material :

Rhodium (Rh), Ruthenium (Ru)
