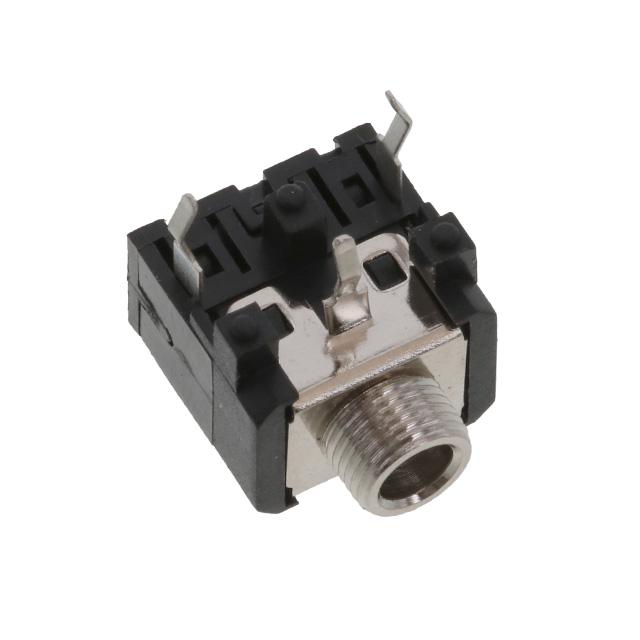

STX-3200-3CB
- Mfr.Part #
- STX-3200-3CB
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- STEREO JACK 3P THREAD SHIELD, B/
- Stock
- 200
- In Stock :
- 200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Audio Connectors
- MIL Conformance :
- No
- Insulation Resistance :
- 100000000Ohm
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- IEC Conformance :
- No
- Body Length or Diameter :
- 0.472 inch
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Reference Standard :
- UL, CSA
- Actual Diameter :
- 0.142 (3.60mm)
- Shielding :
- Unshielded
- Body Color :
- Silver, Black
- Operating Temperature :
- -25°C~100°C
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Voltage - Rated :
- 500V
- DIN Conformance :
- No
- Internal Switch(s) :
- Does Not Contain Switch
- Gender :
- FEMALE
- Number of Poles :
- 3
- RoHS Status :
- RoHS Compliant
- Contact Resistance :
- 100MOhm
- Feature :
- Board Guide, Thread Lock
- Dielectric Withstanding Voltage :
- 700VAC V
- Factory Lead Time :
- 20 Weeks
- Number of Ports :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Copper, Tin
- Contact Style :
- RND PIN-SKT
- Termination :
- Kinked Pin
- Mount :
- Through Hole
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Contact Material :
- Copper Alloy, Phosphor Bronze
- Radiation Hardening :
- No
- Body Depth :
- 0.555 inch
- Additional Feature :
- 94V-0
- Packaging :
- Bulk
- Orientation :
- Horizontal
- Number of Conductors :
- ONE
- Polarization Key :
- POLARIZED HOUSING
- Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Thread Size :
- M6x0.5
- JESD-609 Code :
- e3
- Durability :
- 5000 Cycles
- Reliability :
- COMMERCIAL
- Series :
- STX-3200
- Option :
- GENERAL PURPOSE
- Number of Contacts :
- 3
- Connector Type :
- Phone Jack
- ECCN Code :
- EAR99
- Contact Material - Plating :
- Nickel, Tin
- Datasheets
- STX-3200-3CB
