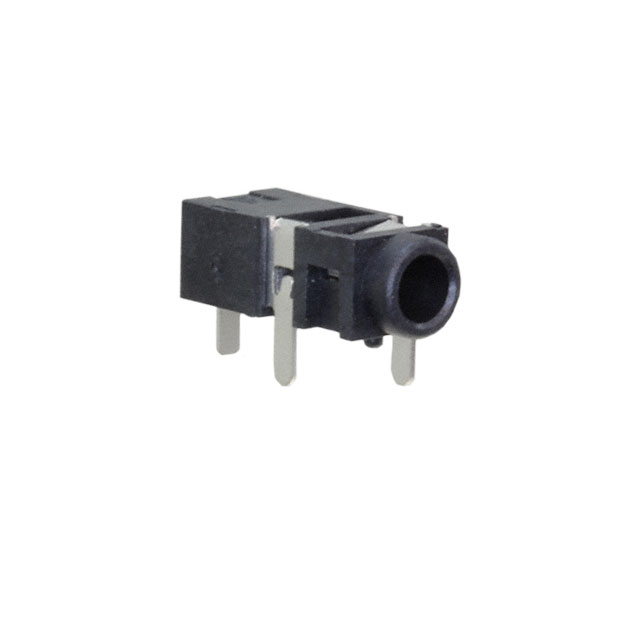

STX-2000-3N

Share

Or copy the link below:

Mfr.Part #
STX-2000-3N
Manufacturer
Kycon
Package / Case
Datasheet
Download
Description
CONN JACK STEREO 2.5MM R/A
Stock
10,629
In Stock :
10,629

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Kycon
Product Category :
Audio Connectors
Mount :
Surface Mount
Series :
STX-2000
Factory Lead Time :
20 Weeks
Termination :
Solder
Number of Conductors :
ONE
IEC Conformance :
No
Actual Diameter :
0.102 (2.60mm)
Contact Resistance :
60mOhm
Mounting Type :
Through Hole, Right Angle
Connector Type :
Phone Jack
Voltage - Rated :
250V
Body Breadth :
0.157 inch
Published :
2005
JESD-609 Code :
e4
Durability :
5000 Cycles
Operating Temperature :
-25°C~80°C
Contact Material - Plating :
Silver
Number of Ports :
1
Packaging :
Bulk
Gender :
FEMALE
Body Length or Diameter :
0.197 inch
Signal Lines :
Stereo (3 Conductor, TRS)
Orientation :
Horizontal
Dielectric Withstanding Voltage :
250VAC V
Reference Standard :
UL, CSA
Radiation Hardening :
No
Internal Switch(s) :
Does Not Contain Switch
Industry Recognized Mating Diameter :
2.50mm (0.094, 3/32, Sub Mini, Miniature) - Headphone
Number of Positions/Contacts :
3 Conductors, 3 Contacts
Option :
GENERAL PURPOSE
Contact Material :
COPPER ALLOY
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Withdrawl Force-Min :
2.9468 N
Number of Contacts :
3
Shielding :
Unshielded
Insulation Resistance :
100000000Ohm
Reliability :
COMMERCIAL
MIL Conformance :
No
Length - Termination :
0.098 inch
Feature :
Board Guide
Contact Style :
RND PIN-SKT
Body Color :
Black
Housing Material :
Polybutylene Terephthalate (PBT)
Number of Poles :
3
RoHS Status :
RoHS Compliant
DIN Conformance :
No
Datasheets
STX-2000-3N
Introducing Audio Connectors Kycon STX-2000-3N from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-25°C~80°C, STX-2000-3N pinout, STX-2000-3N datasheet PDF, STX-2000-3N amp .Beyond Audio Connectors Kycon STX-2000-3N ,we also offer RCJ-042, RCJ-2223, 50-00040, Our vast inventory has you covered. Contact us now for immediate solutions.
