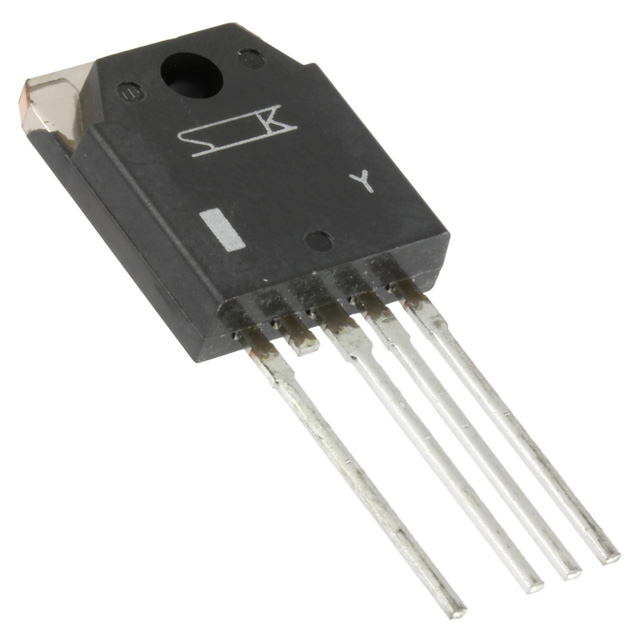

STD03P

Manufacturer :

Sanken Electric Co., Ltd.

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Element Material :

SILICON

RoHS Status :

RoHS Compliant

Supplier Device Package :

TO-3P-5L

Mount :

Through Hole

Packaging :

Bulk

Power - Max :

160W

Package :

Bulk

Voltage - Collector Emitter Breakdown (Max) :

160V

Reach Compliance Code :

Unknown

Pin Count :

5

Collector Emitter Voltage (VCEO) :

2V

Current - Collector Cutoff (Max) :

100μA ICBO

Product Status :

Obsolete

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Base Product Number :

STD03

ECCN Code :

EAR99

Vce Saturation (Max) @ Ib, Ic :

2V @ 10mA, 10A

Configuration :

DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

Number of Terminations :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

12 Weeks

Qualification Status :

Not Qualified

Polarity/Channel Type :

PNP

Pbfree Code :

yes

Max Power Dissipation :

160W

Collector Emitter Breakdown Voltage :

160V

Number of Elements :

1

Frequency - Transition :

--

Operating Temperature :

150°C TJ

DC Current Gain (hFE) (Min) @ Ic, Vce :

5000 @ 10A 4V

Transistor Type :

PNP - Darlington

Series :

--

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Transistor Application :

AMPLIFIER

Max Collector Current :

15A

Terminal Position :

Single

Package / Case :

TO-3P-5

Published :

2006

Mounting Type :

Through Hole

JESD-30 Code :

R-PSFM-T4

Current - Collector (Ic) (Max) :

15A

Lead Free :

Lead Free
