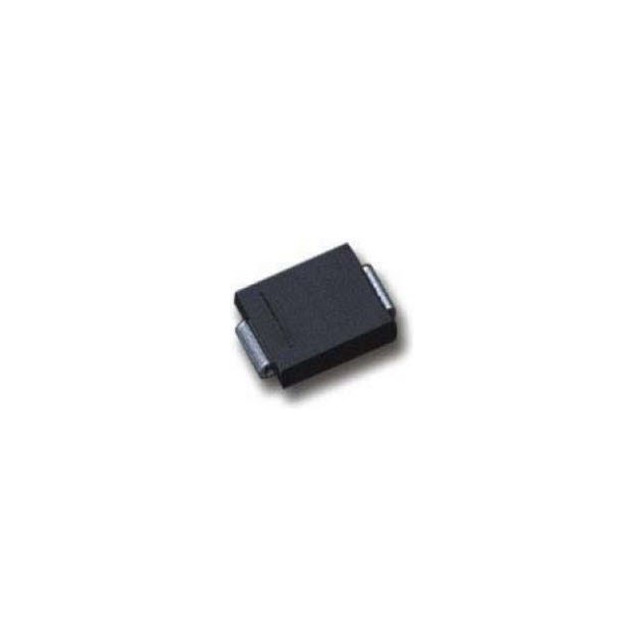

SMDJ10

Manufacturer :

Meritek

Product Category :

Number of Terminations :

2

Terminal Form :

J BEND

Power - Peak Pulse :

3000W 3kW

RoHS Status :

ROHS3 Compliant

Applications :

GENERAL PURPOSE

Peak Pulse Power :

3kW

Packaging :

Tape and Reel (TR)

Type :

Zener

Power Dissipation-Max :

6.5W

Termination :

SMD/SMT

Unidirectional Channels :

1

Configuration :

Single

Reverse Standoff Voltage :

10V

Diode Element Material :

SILICON

Breakdown Voltage :

11.1V

Mount :

Surface Mount

Operating Supply Voltage :

10V

Terminal Finish :

Matte Tin (Sn)

Non-rep Peak Rev Power Dis-Max :

3000W

Leakage Current :

5μA

Pbfree Code :

No

Peak Pulse Current :

176.5A

Mounting Type :

Surface Mount

Time@Peak Reflow Temperature-Max (s) :

40

Pin Count :

2

ECCN Code :

EAR99

Terminal Position :

Dual

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

DO-214AB, SMC

Additional Feature :

EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED

Polarity :

Unidirectional

Clamping Voltage :

17V

Published :

2009

Power Line Protection :

No

Max Surge Current :

176.5A

Number of Pins :

2

Series :

SMDJ

Operating Temperature :

-65°C~150°C TJ

Peak Reflow Temperature (Cel) :

260

Number of Elements :

1

Test Current :

1mA

Voltage - Clamping (Max) @ Ipp :

17V

Factory Lead Time :

17 Weeks

Reverse Breakdown Voltage :

11.1V

JESD-609 Code :

e3
