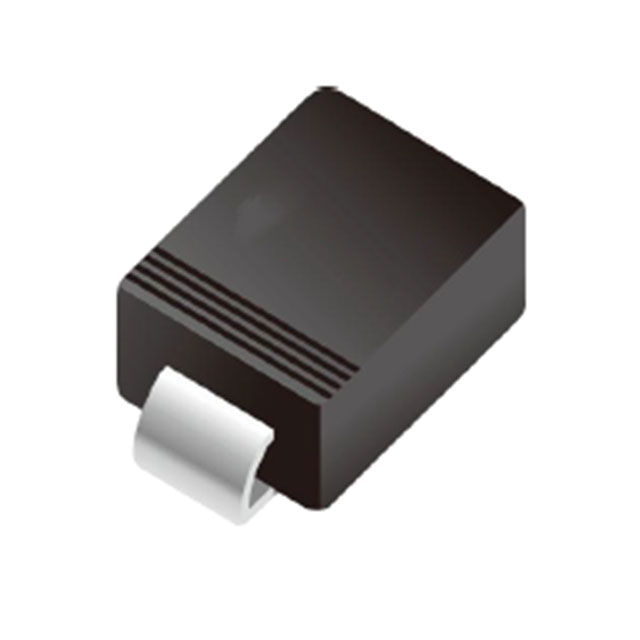

SMBJ78A

Manufacturer :

MDD

Product Category :

Reverse Breakdown Voltage :

86.7V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

DO-214AA, SMB

Breakdown Voltage :

86.7V

Base Part Number :

SMBJ78

Configuration :

Single

Max Power Dissipation :

600W

Series :

SMBJ

Operating Temperature :

-55°C~150°C TJ

Published :

2010

Clamping Voltage :

126V

Peak Pulse Power :

600W

Mounting Type :

Surface Mount

Type :

Zener

Terminal Form :

C BEND

Number of Terminations :

2

Packaging :

Digi-Reel®

RoHS Status :

ROHS3 Compliant

Reverse Standoff Voltage :

78V

Termination :

SMD/SMT

Terminal Finish :

Matte Tin (Sn)

Test Current :

1mA

Number of Elements :

1

Applications :

GENERAL PURPOSE

Peak Pulse Current :

4.8A

Mount :

Surface Mount

Factory Lead Time :

14 Weeks

Pin Count :

2

Diode Element Material :

SILICON

Power Line Protection :

No

ECCN Code :

EAR99

Operating Supply Voltage :

3.5V

Leakage Current :

5μA

Terminal Position :

Dual

Max Surge Current :

100A

Number of Pins :

2

Polarity :

Unidirectional

Additional Feature :

PRSM-MIN

Voltage - Clamping (Max) @ Ipp :

126V

JESD-609 Code :

e3

Pbfree Code :

yes
