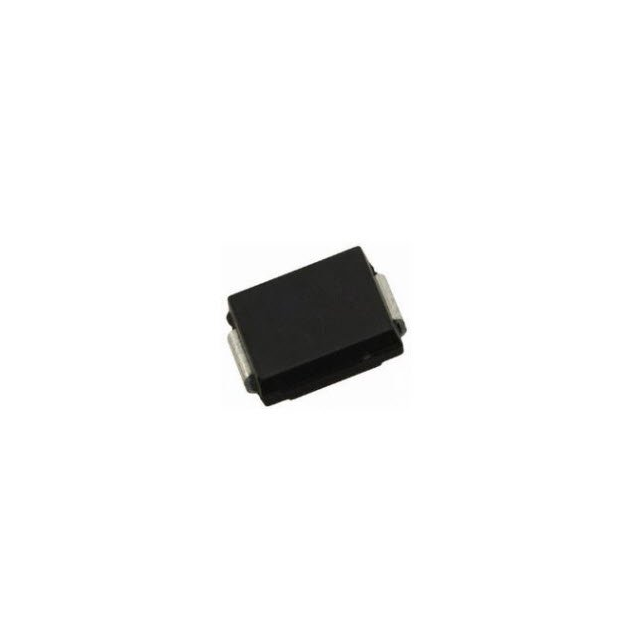

SMBJ10
- Mfr.Part #
- SMBJ10
- Manufacturer
- Meritek
- Package / Case
- DO-214AA, SMB
- Datasheet
- Download
- Description
- TVS DIODE 10VWM 18.8VC
- Stock
- 48,176
- In Stock :
- 48,176
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Meritek
- Product Category :
- Max Operating Temperature :
- 150°C
- Lead Free :
- Lead Free
- Mount :
- Surface Mount
- Number of Channels :
- 1
- Max Surge Current :
- 35.3A
- Number of Pins :
- 2
- Series :
- SMBJ
- Voltage - Clamping (Max) @ Ipp :
- 17V
- Factory Lead Time :
- 17 Weeks
- Power Dissipation :
- 600W
- Breakdown Voltage :
- 11.1V
- Power - Peak Pulse :
- 600W
- Unidirectional Channels :
- 1
- Type :
- Zener
- Min Operating Temperature :
- -65°C
- Supplier Device Package :
- DO-214AA (SMBJ)
- Package / Case :
- DO-214AA, SMB
- Composition :
- Zener
- Reverse Standoff Voltage :
- 10V
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Direction :
- Unidirectional
- Height :
- 2.44mm
- Number of Unidirectional Channels :
- 1
- Operating Temperature :
- -65°C~150°C TJ
- Voltage - Breakdown (Min) :
- 11.1V
- Power Line Protection :
- No
- Max Power Dissipation :
- 5W
- Leakage Current :
- 5μA
- Peak Pulse Current :
- 35.3A
- Current - Peak Pulse (10/1000μs) :
- 35.3A
- Width :
- 3.94mm
- Reverse Breakdown Voltage :
- 11.1V
- REACH SVHC :
- No SVHC
- Polarity :
- Unidirectional
- Applications :
- GENERAL PURPOSE
- Length :
- 5.59mm
- Voltage - Reverse Standoff (Typ) :
- 10V
- Clamping Voltage :
- 17V
- Max Breakdown Voltage :
- 12.3V
- Peak Pulse Power :
- 600W
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated DC :
- 10V
- Number of Elements :
- 1
- Test Current :
- 1mA
- Mounting Type :
- Surface Mount
- Termination :
- SMD/SMT
- Power Rating :
- 600W
- Published :
- 2004
- Operating Supply Voltage :
- 10V
- Datasheets
- SMBJ10
