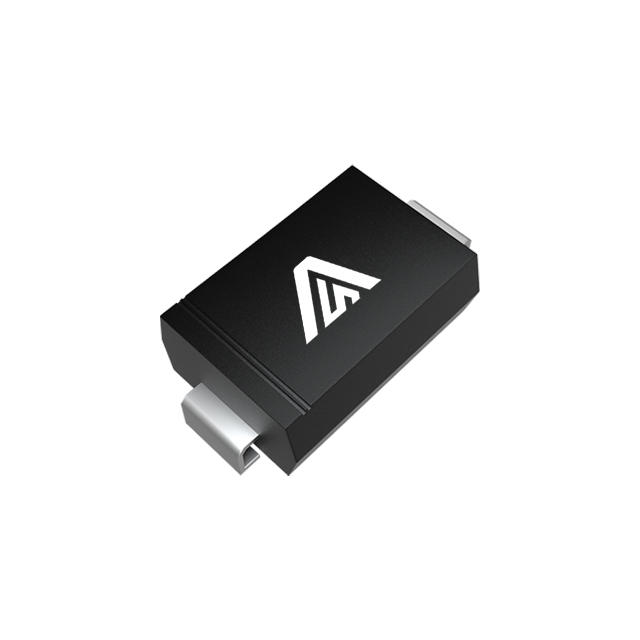

SMBJ6.5CA

Manufacturer :

ANBON SEMICONDUCTOR (INT'L) LIMITED

Product Category :

Number of Bidirectional Channels :

1

REACH SVHC :

No SVHC

Height :

2.4384mm

Voltage - Rated DC :

6.5V

Clamping Voltage :

11.2V

Direction :

Bidirectional

Width :

3.937mm

Termination :

SMD/SMT

Current - Peak Pulse (10/1000μs) :

53.6A

Supplier Device Package :

DO-214AA (SMBJ)

ESD Protection :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Standoff Voltage :

6.5V

Factory Lead Time :

18 Weeks

Operating Supply Voltage :

6.5V

Lead Free :

Lead Free

Number of Pins :

2

Packaging :

Tape and Reel (TR)

Max Operating Temperature :

150°C

Bidirectional Channels :

1

Reverse Breakdown Voltage :

7.22V

Composition :

Zener

Power Rating :

600W

Radiation Hardening :

No

Number of Elements :

1

Leakage Current :

1mA

Voltage - Clamping (Max) @ Ipp :

11.2V

Number of Channels :

1

Peak Pulse Power :

600W

Polarity :

Bidirectional

Min Operating Temperature :

-55°C

Power Line Protection :

No

Package / Case :

DO-214AA, SMB

Max Reverse Leakage Current :

1mA

Test Current :

10mA

Max Breakdown Voltage :

7.98V

Power Dissipation :

600W

Element Configuration :

Single

Mounting Type :

Surface Mount

Max Surge Current :

53.6A

RoHS Status :

ROHS3 Compliant

Voltage - Reverse Standoff (Typ) :

6.5V

Length :

4.5466mm

Mount :

Surface Mount

Type :

Zener

Applications :

GENERAL PURPOSE

Series :

SMBJ

Power - Peak Pulse :

600W

Voltage - Breakdown (Min) :

7.22V

Peak Pulse Current :

53.6A

Breakdown Voltage :

7.22V

Operating Temperature :

-65°C~150°C TJ
