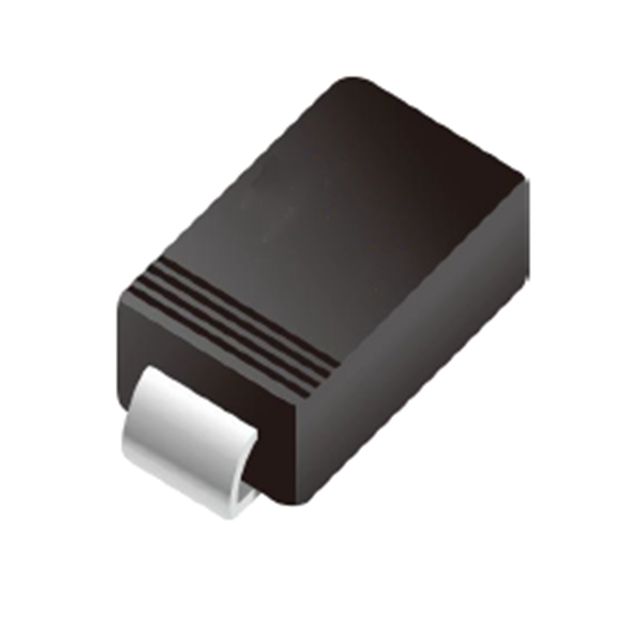

SMAJ7.0CA

Manufacturer :

MDD

Product Category :

Mount :

Surface Mount

Composition :

Zener

REACH SVHC :

No SVHC

Leakage Current :

400μA

Voltage - Breakdown (Min) :

7.78V

Max Output Current :

3.5A

Current - Peak Pulse (10/1000μs) :

33.3A

Polarity :

Bidirectional

Peak Pulse Current :

33.3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Zener

Power - Peak Pulse :

400W

Operating Temperature :

-65°C~150°C TJ

Capacitance :

90pF

Height :

2.29mm

Packaging :

Tape and Reel (TR)

Max Breakdown Voltage :

8.6V

Voltage - Clamping (Max) @ Ipp :

12V

Power Dissipation :

400W

Factory Lead Time :

18 Weeks

Lead Free :

Lead Free

Voltage - Reverse Standoff (Typ) :

7V

Test Current :

10mA

Number of Pins :

2

Bidirectional Channels :

1

Max Power Dissipation :

3.3W

Power Rating :

400W

Supplier Device Package :

DO-214AC (SMA)

Peak Pulse Power :

400W

Clamping Voltage :

113V

Voltage - Rated DC :

7V

Operating Supply Voltage :

70V

Series :

SMAJ

Power Line Protection :

No

Direction :

Bidirectional

Applications :

GENERAL PURPOSE

Reverse Breakdown Voltage :

7.78V

Breakdown Voltage :

7.78V

Termination :

SMD/SMT

RoHS Status :

ROHS3 Compliant

Length :

5.28mm

Width :

2.79mm

Min Operating Temperature :

-65°C

Max Operating Temperature :

150°C

Mounting Type :

Surface Mount

Package / Case :

DO-214AC, SMA

Reverse Standoff Voltage :

7V

Max Surge Current :

3.5A

Number of Channels :

1

Number of Bidirectional Channels :

1

Number of Elements :

1
