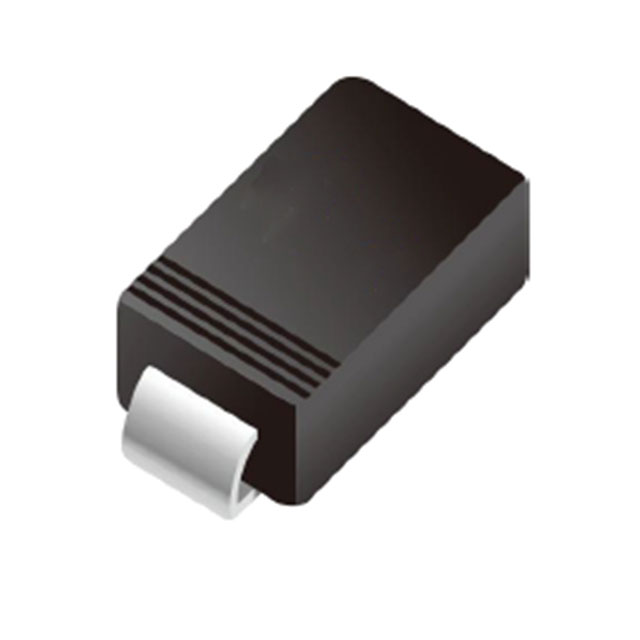

SMAJ10A

Manufacturer :

MDD

Product Category :

Factory Lead Time :

17 Weeks

Clamping Voltage :

17V

Applications :

GENERAL PURPOSE

Peak Pulse Power :

400W

Number of Unidirectional Channels :

1

Power Rating :

400W

Packaging :

Tape and Reel (TR)

Max Breakdown Voltage :

12.3V

Type :

Zener

Mount :

Surface Mount

Package / Case :

DO-214AC, SMA

Termination :

SMD/SMT

Voltage - Clamping (Max) @ Ipp :

17V

Direction :

Unidirectional

Operating Supply Voltage :

10V

Peak Pulse Current :

23.5A

Width :

2.79mm

Current - Peak Pulse (10/1000μs) :

23.5A

Power - Peak Pulse :

400W

Operating Temperature :

-65°C~150°C TJ

Voltage - Reverse Standoff (Typ) :

10V

Polarity :

Unidirectional

Number of Elements :

1

Leakage Current :

5μA

Voltage - Breakdown (Min) :

11.1V

Test Current :

1mA

Number of Pins :

2

Height :

2.29mm

Power Line Protection :

No

Min Operating Temperature :

-55°C

Unidirectional Channels :

1

Lead Free :

Lead Free

Number of Channels :

1

Reverse Breakdown Voltage :

11.1V

Mounting Type :

Surface Mount

Composition :

Zener

Max Operating Temperature :

150°C

Series :

SMAJ

Voltage - Rated DC :

10V

RoHS Status :

ROHS3 Compliant

Power Dissipation :

400W

Reverse Standoff Voltage :

10V

REACH SVHC :

No SVHC

Length :

5.28mm

Max Surge Current :

23.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2009

Max Power Dissipation :

400W

Supplier Device Package :

DO-214AC (SMA)

Breakdown Voltage :

11.1V
