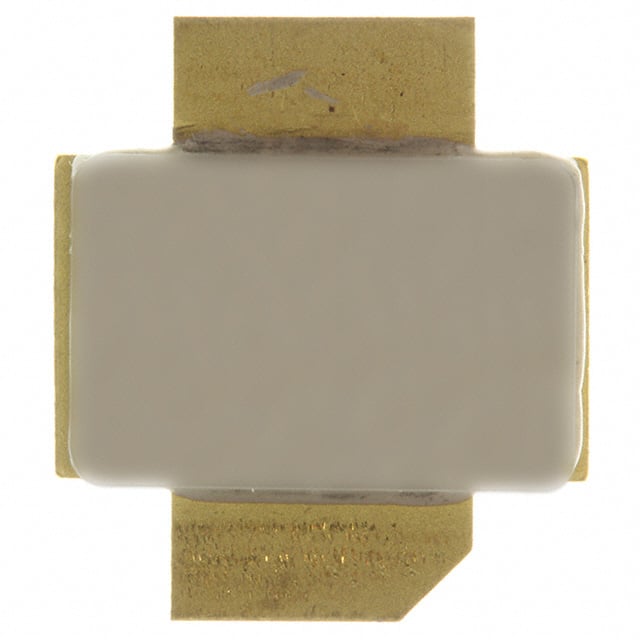

SD57030-01

Manufacturer :

STMicroelectronics

Product Category :

Transistors - FETs, MOSFETs - RF

Gain :

15dB

Transistor Type :

LDMOS

Element Configuration :

Single

Voltage - Rated DC :

65V

Terminal Position :

Dual

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package / Case :

M250

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Number of Pins :

250

Min Breakdown Voltage :

65V

ECCN Code :

EAR99

Number of Elements :

1

Input Capacitance :

58pF

Current Rating :

4A

Transistor Application :

AMPLIFIER

Lifecycle Status :

ACTIVE (Last Updated: 8 months ago)

Gate to Source Voltage (Vgs) :

20V

Min Operating Temperature :

-65°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Qualification Status :

Not Qualified

Frequency :

945MHz

Case Connection :

SOURCE

Mount :

Surface Mount

Voltage - Test :

28V

Factory Lead Time :

32 Weeks

Terminal Form :

Flat

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Polarity/Channel Type :

N-Channel

Operating Mode :

ENHANCEMENT MODE

Power Dissipation :

74W

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

JESD-30 Code :

R-PDFP-F2

Number of Terminations :

2

Base Part Number :

SD57030

Drain to Source Breakdown Voltage :

65V

Drain to Source Voltage (Vdss) :

65V

Max Operating Temperature :

200°C

Lead Free :

Lead Free

Pin Count :

3

Continuous Drain Current (ID) :

4A

Max Power Dissipation :

74W

Current - Test :

50mA

Drain Current-Max (Abs) (ID) :

4A

Max Output Power :

30W
