SD2900

Share

Or copy the link below:

Mfr.Part #
SD2900
Manufacturer
STMicroelectronics
Package / Case
M113
Datasheet
Download
Description
TRANS RF N-CH HF/VHF/UHF M113
Stock
49,380
In Stock :
49,380

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
STMicroelectronics
Product Category :
Transistors - FETs, MOSFETs - RF
Packaging :
Bulk
FET Technology :
METAL-OXIDE SEMICONDUCTOR
Number of Pins :
113
Qualification Status :
Not Qualified
Number of Terminations :
4
Max Operating Temperature :
150°C
Current - Test :
50mA
Peak Reflow Temperature (Cel) :
NOT SPECIFIED
Mount :
Screw
Terminal Form :
Flat
Element Configuration :
Single
Time@Peak Reflow Temperature-Max (s) :
NOT SPECIFIED
Drain to Source Voltage (Vdss) :
65V
Power Dissipation :
21.9W
Drain to Source Breakdown Voltage :
65V
Input Capacitance :
8.5pF
Transistor Type :
N-Channel
Transistor Application :
AMPLIFIER
Package / Case :
M113
Operating Mode :
ENHANCEMENT MODE
ECCN Code :
EAR99
Frequency :
400MHz
Lead Free :
Lead Free
Drain Current-Max (Abs) (ID) :
0.9A
Max Output Power :
5W
Min Operating Temperature :
-65°C
Pin Count :
4
Gain :
16dB
Base Part Number :
SD2900
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Elements :
1
Current Rating :
900mA
Continuous Drain Current (ID) :
900mA
Terminal Position :
Radial
Voltage - Test :
28V
Max Power Dissipation :
21.9W
Voltage - Rated DC :
65V
RoHS Status :
ROHS3 Compliant
Gate to Source Voltage (Vgs) :
20V
JESD-30 Code :
O-PRFM-F4
Introducing Transistors - FETs, MOSFETs - RF STMicroelectronics SD2900 from Chip IC,where excellence meets affordability. This product stands out with its Number of Pins:113, Number of Terminations:4, Package / Case:M113, Gain:16dB, Base Part Number:SD2900, SD2900 pinout, SD2900 datasheet PDF, SD2900 amp .Beyond Transistors - FETs, MOSFETs - RF STMicroelectronics SD2900 ,we also offer BLF174XR,112, BLF2425M9L30U, BLF183XRU, Our vast inventory has you covered. Contact us now for immediate solutions.

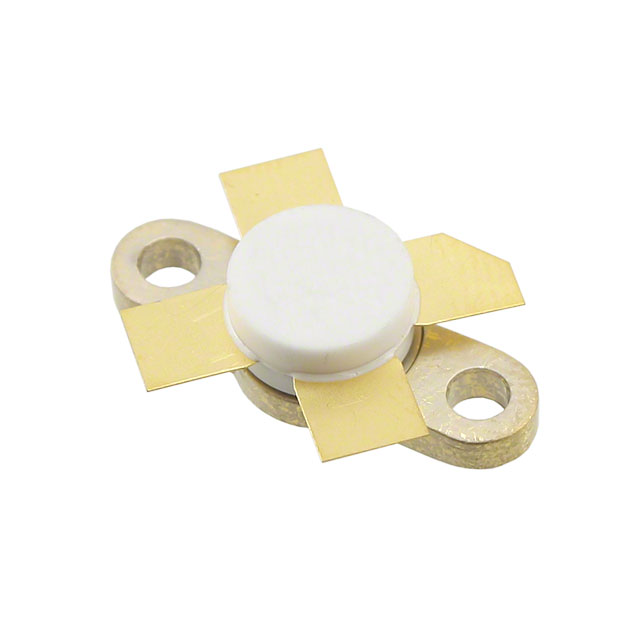

STMicroelectronics SD2900


SD2900 datasheet pdf and Transistors - FETs, MOSFETs - RF product details from STMicroelectronics stock available at

SD2900 Description



SD2900 MOSFET is an N-channel MOS field-effect RF power transistor designed to be used in 28V DC large signal applications up to 500 MHz. The special low thermal resistance packaging makes SD2900 N-channel MOSFET suitable for ISM applications in which reliability and durability are essential. STMicroelectronics SD2900 has the excellent thermal stability.





SD2900 Features



Common source configuration

Excellent thermal stability

28 VOLTS

2 - 500 MHz

Gold metalization





SD2900 Applications



ISM applications

DC large signal applications
