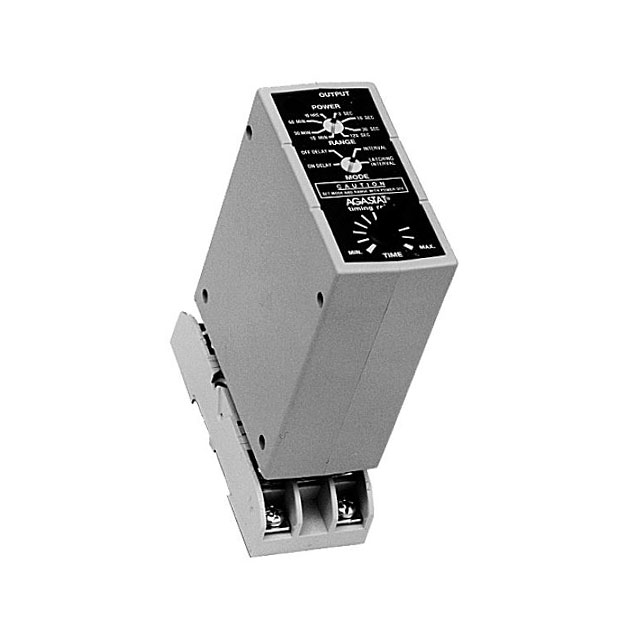

SCFRX902AA

Share

Or copy the link below:

Mfr.Part #
SCFRX902AA
Manufacturer
TE Connectivity Aerospace Defense and Marine
Package / Case
Datasheet
Download
Description
RELAY TIME DELAY 10HRS 10A 120V
Stock
5
In Stock :
5

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity Aerospace Defense and Marine
Product Category :
Time Delay Relays
Voltage - Supply :
120VAC 125VDC
Timing Adjustment Method :
Hand Dial
Mounting Type :
Socketable
Adjustable Time Delay-Max :
3 s
Factory Lead Time :
13 Weeks
Min Operating Temperature :
-30°C
Contact Current Rating :
10A
Function :
Programmable (Multi-Function)
Termination Style :
Plug In, 11 Pin (Octal)
Contact/Output Supply Type :
AC/DC
Termination :
PLUG
Max Current Rating :
10A
Body Height :
90mm
Max Voltage Rating (DC) :
28V
Relay Action :
Momentary
REACH SVHC :
Unknown
Body Breadth :
36 mm
Circuit :
DPDT (2 Form C)
Timing Initiate Method :
Input Voltage
Physical Dimension :
72mm x 36mm x 90mm
Coil Voltage (AC) :
120V
Mount :
Socket
Relay Type :
Mechanical Relay
Length :
72mm
Delay Time :
0.1 Sec ~ 10 Hrs
Contact Rating @ Voltage :
10A @ 120VAC
Throw Configuration :
DPDT
Lifecycle Status :
ACTIVE (Last Updated: 6 days ago)
Published :
2008
Contact (AC) Max Rating R Load :
10A@120VAC
Number of Pins :
8
Additional Feature :
OTHER TIMING RANGES ALSO AVAILABLE
Series :
SCF, AGASTAT
Coil Voltage (DC) :
125V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
RoHS Status :
Non-RoHS Compliant
ELV :
Non-Compliant
Nominal Input Voltage (AC) :
120V
Max Voltage Rating (AC) :
120V
Max Operating Temperature :
65°C
Reference Standard :
CE; CSA; UL
ECCN Code :
EAR99
Introducing Time Delay Relays TE Connectivity Aerospace Defense and Marine SCFRX902AA from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Socketable, Circuit:DPDT (2 Form C), Number of Pins:8, SCFRX902AA pinout, SCFRX902AA datasheet PDF, SCFRX902AA amp .Beyond Time Delay Relays TE Connectivity Aerospace Defense and Marine SCFRX902AA ,we also offer 88827145, RTE-P2AF20, 88827135, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity Aerospace Defense and Marine SCFRX902AA
