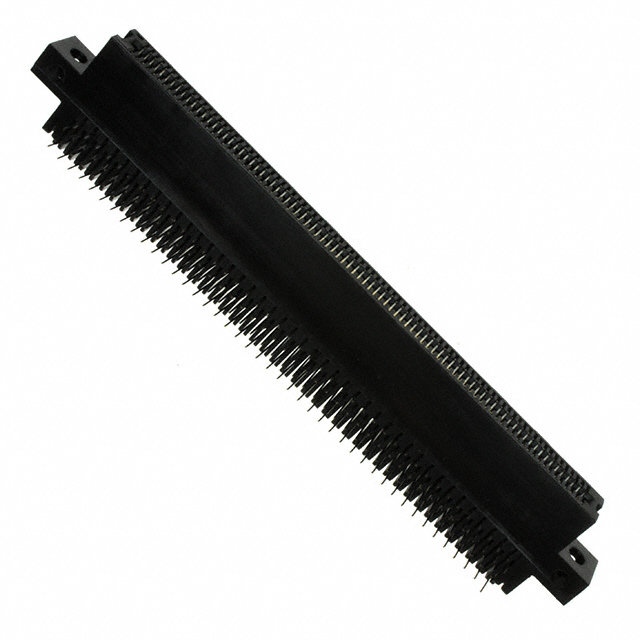

RZB85DHAS
Or copy the link below:
- Mfr.Part #
- RZB85DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 170POS 0.050
- Stock
- 28,886
- In Stock ：
- 28,886
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Insulation Resistance :
- 5000000000Ohm
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Length :
- 129mm
- Housing Material :
- Plastic
- Number of Positions :
- 170
- Contact Type :
- Hairpin Bellows
- Mounting Type :
- Through Hole, Right Angle
- Number of Positions/Bay/Row :
- 85
- Contact Resistance :
- 30mOhm
- Plating Thickness :
- 10μin
- Contact Material :
- Phosphor Bronze
- Contact Finish :
- Gold
- Number of Conductors :
- ONE
- Pitch :
- 0.050 1.27mm
- Number Of PCB Rows :
- 4
- Height :
- 15.5mm
- Mount :
- Through Hole
- JESD-609 Code :
- e0
- Body Depth :
- 0.915 inch
- Body/Shell Style :
- Receptacle
- Operating Temperature :
- -65°C~125°C
- Card Thickness :
- 0.062 1.57mm
- Card Type :
- Non Specified - Dual Edge
- Rated Current (Signal) :
- 1A
- Read Out :
- Dual
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Body Breadth :
- 0.37 inch
- Packaging :
- Tray
- Termination :
- Solder, Staggered
- Reliability :
- COMMERCIAL
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Published :
- 2003
- Connector Type :
- Hairpin Bellows
- Pbfree Code :
- No
- Total Number of Contacts :
- 170
- Number of Rows :
- 2
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ECCN Code :
- EAR99
- Additional Feature :
- NONE
- Insertion Force-Max :
- 4.448 N
- Gender :
- FEMALE
- Lead Free :
- Contains Lead
- Width :
- 9.4mm
- Reference Standard :
- UL, CSA
- Datasheets
- RZB85DHAS
RZB85DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 170 Positions Polyphenylene Sulfide (PPS)
RZB85DHAS Overview
The material was packaged according to Tray's specs.It is recommended to mount the device using mounting type Through Hole, Right Angle.As a method of connecting, the device uses the connector socket Hairpin Bellows.This chip has the following extra features: NONE
RZB85DHAS Features
RZB85DHAS Applications
There are a lot of Sullins Connector Solutions
RZB85DHAS Edgeboard Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
