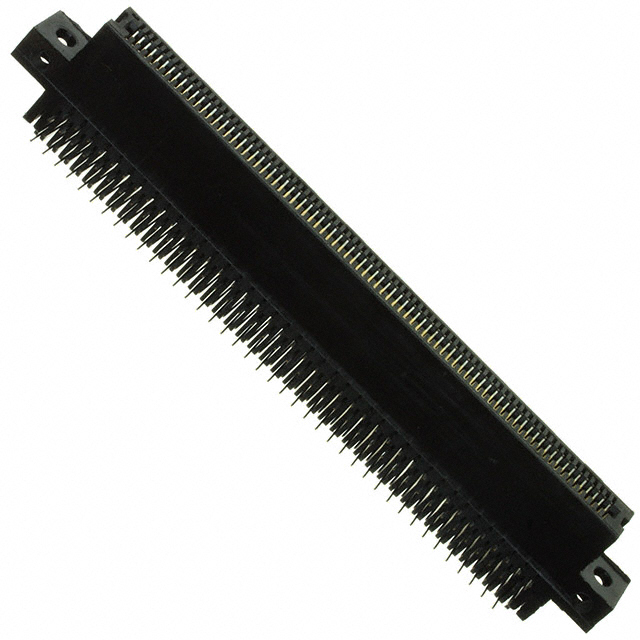

RZB80DHAS
Or copy the link below:
- Mfr.Part #
- RZB80DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 160POS 0.050
- Stock
- 16,294
- In Stock ：
- 16,294
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Reliability :
- COMMERCIAL
- RoHS Status :
- Non-RoHS Compliant
- Contact Resistance :
- 30mOhm
- ECCN Code :
- EAR99
- Color :
- Black
- Width :
- 9.4mm
- Published :
- 2003
- Reference Standard :
- UL, CSA
- Pitch :
- 0.050 1.27mm
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Gender :
- FEMALE
- Length :
- 123mm
- Read Out :
- Dual
- Contact Type :
- Hairpin Bellows
- HTS Code :
- 8536.69.40.40
- Body/Shell Style :
- Receptacle
- Plating Thickness :
- 10μin
- Contact Finish :
- Gold
- Body Depth :
- 0.915 inch
- Termination :
- Solder, Staggered
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Height :
- 15.5mm
- Rated Current (Signal) :
- 1A
- Packaging :
- Tray
- Pbfree Code :
- No
- Card Type :
- Non Specified - Dual Edge
- Insertion Force-Max :
- 4.448 N
- JESD-609 Code :
- e0
- Mount :
- Through Hole
- Additional Feature :
- NONE
- Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 160
- Body Breadth :
- 0.37 inch
- Housing Material :
- Plastic
- Insulation Resistance :
- 5000000000Ohm
- Mounting Type :
- Through Hole, Right Angle
- Number Of PCB Rows :
- 4
- Number of Rows :
- 2
- Number of Positions/Bay/Row :
- 80
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Number of Positions :
- 160
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Connector Type :
- Hairpin Bellows
- Lead Free :
- Contains Lead
- Operating Temperature :
- -65°C~125°C
- Contact Material :
- Phosphor Bronze
- Card Thickness :
- 0.062 1.57mm
- Number of Conductors :
- ONE
- Datasheets
- RZB80DHAS
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 160 Positions Polyphenylene Sulfide (PPS)
RZB80DHAS Overview
The material was packaged according to the specifications provided by Tray.You should mount it type Through Hole, Right Angle.Connecting the device uses connector socket Hairpin Bellows.In addition to the above features, this chip has the following features: NONE
RZB80DHAS Features
RZB80DHAS Applications
There are a lot of Sullins Connector Solutions
RZB80DHAS Edgeboard Connectors applications.
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
