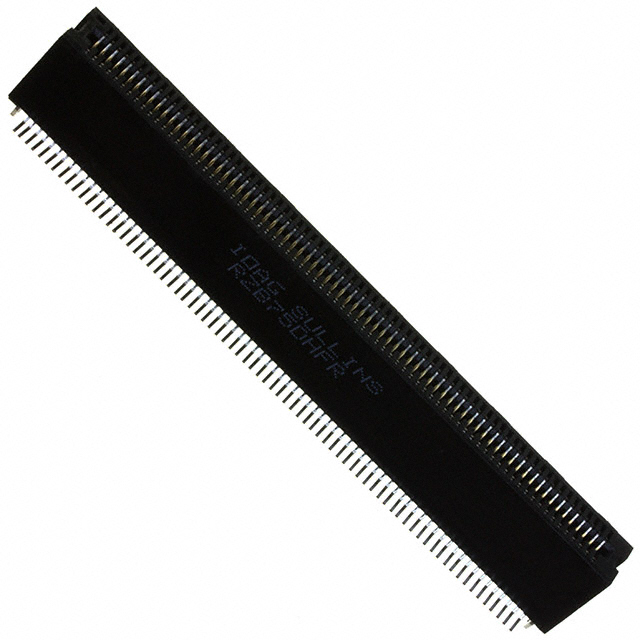

RZB75DHFR
Or copy the link below:
- Mfr.Part #
- RZB75DHFR
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 150POS 0.050
- Stock
- 20,567
- In Stock ：
- 20,567
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Flammability Rating :
- UL94 V-0
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Feature :
- Board Lock
- Color :
- Black
- Contact Finish :
- Gold
- Published :
- 2003
- Number of Rows :
- 2
- Width :
- 9.4mm
- Height :
- 15.5mm
- Length :
- 117mm
- Total Number of Contacts :
- 150
- Connector Type :
- Hairpin Bellows
- Operating Temperature :
- -65°C~125°C
- Housing Material :
- Plastic
- Termination :
- Solder
- Number of Conductors :
- ONE
- Contact Type :
- Hairpin Bellows
- Card Type :
- Non Specified - Dual Edge
- RoHS Status :
- Non-RoHS Compliant
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pitch :
- 0.050 1.27mm
- Gender :
- FEMALE
- Body Breadth :
- 0.37 inch
- Body Depth :
- 0.61 inch
- Plating Thickness :
- 10μin
- Read Out :
- Dual
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Rated Current (Signal) :
- 1A
- Lead Free :
- Contains Lead
- Card Thickness :
- 0.062 1.57mm
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions/Bay/Row :
- 75
- Number of Positions :
- 150
- Number Of PCB Rows :
- 2
- Packaging :
- Tray
- Contact Material :
- Phosphor Bronze
- Reliability :
- COMMERCIAL
- Datasheets
- RZB75DHFR
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder Gold 150 Positions Polyphenylene Sulfide (PPS)
RZB75DHFR Overview
Material was packaged in accordance with Tray's specifications.It's recommended to mount type Surface Mount.The device is connected via the connector socket Hairpin Bellows.This device is equipped with Board Lock features.
RZB75DHFR Features
RZB75DHFR Applications
There are a lot of Sullins Connector Solutions
RZB75DHFR Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
