RZB75DHAS
Or copy the link below:
- Mfr.Part #
- RZB75DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 150POS 0.050
- Stock
- 43,056
- In Stock ：
- 43,056
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Published :
- 2003
- Number of Conductors :
- ONE
- Reference Standard :
- UL, CSA
- Number of Positions :
- 150
- Number Of PCB Rows :
- 4
- Operating Temperature :
- -65°C~125°C
- Card Thickness :
- 0.062 1.57mm
- Insulation Resistance :
- 5000000000Ohm
- Lead Free :
- Contains Lead
- Rated Current (Signal) :
- 1A
- Color :
- Black
- Insertion Force-Max :
- 4.448 N
- HTS Code :
- 8536.69.40.40
- Number of Positions/Bay/Row :
- 75
- Length :
- 117mm
- Termination :
- Solder, Staggered
- Body/Shell Style :
- Receptacle
- Packaging :
- Tray
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Plating Thickness :
- 10μin
- Card Type :
- Non Specified - Dual Edge
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Pitch :
- 0.050 1.27mm
- Housing Material :
- Plastic
- Contact Material :
- Phosphor Bronze
- Pbfree Code :
- No
- Contact Type :
- Hairpin Bellows
- Height :
- 15.5mm
- Read Out :
- Dual
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Finish :
- Gold
- Contact Resistance :
- 30mOhm
- Body Breadth :
- 0.37 inch
- Body Depth :
- 0.915 inch
- Mounting Type :
- Through Hole, Right Angle
- Additional Feature :
- NONE
- Reliability :
- COMMERCIAL
- Connector Type :
- Hairpin Bellows
- Mount :
- Through Hole
- JESD-609 Code :
- e0
- Width :
- 9.4mm
- Number of Rows :
- 2
- Total Number of Contacts :
- 150
- RoHS Status :
- Non-RoHS Compliant
- Datasheets
- RZB75DHAS
RZB75DHAS Documents

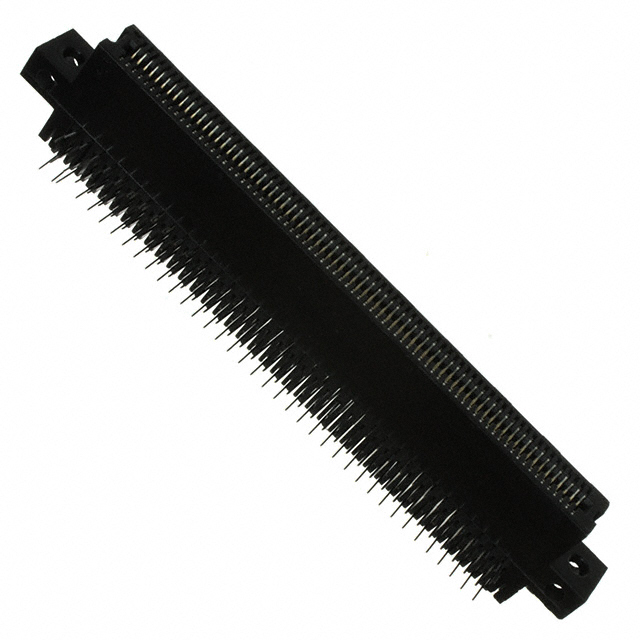

Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 150 Positions Polyphenylene Sulfide (PPS)
RZB75DHAS Overview
Packaged according to Tray's specs.There is a recommendation to mount using type Through Hole, Right Angle.Connecting the device is accomplished by using connector socket Hairpin Bellows.In addition to these features, please note the following:
