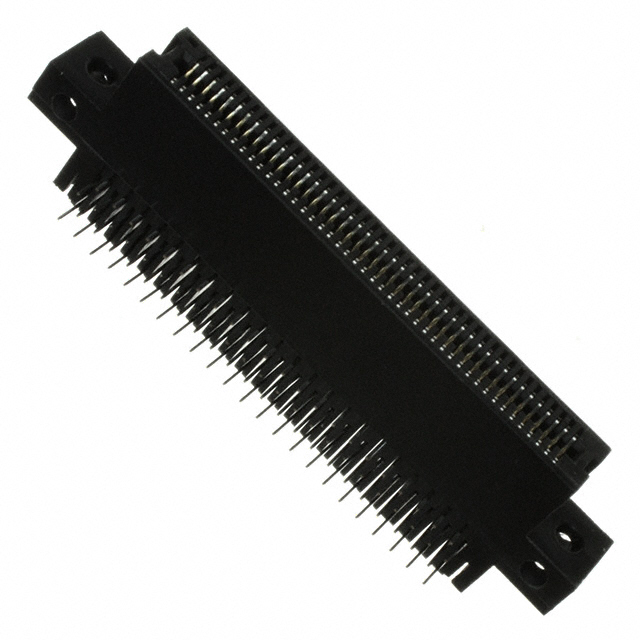

RZB45DHAS
Or copy the link below:
- Mfr.Part #
- RZB45DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 90POS 0.050
- Stock
- 31,660
- In Stock ：
- 31,660
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Number of Positions :
- 90
- Body Breadth :
- 0.37 inch
- Packaging :
- Tray
- Housing Material :
- Plastic
- Number of Rows :
- 2
- Read Out :
- Dual
- Length :
- 78.5mm
- Width :
- 9.4mm
- RoHS Status :
- Non-RoHS Compliant
- JESD-609 Code :
- e0
- Color :
- Black
- Number of Conductors :
- ONE
- Contact Material :
- Phosphor Bronze
- Body Depth :
- 0.915 inch
- Flammability Rating :
- UL94 V-0
- Height :
- 15.5mm
- Total Number of Contacts :
- 90
- Pitch :
- 0.050 1.27mm
- Contact Finish :
- Gold
- Contact Resistance :
- 30mOhm
- Mounting Type :
- Through Hole, Right Angle
- Operating Temperature :
- -65°C~125°C
- Connector Type :
- Hairpin Bellows
- Lead Free :
- Contains Lead
- Pbfree Code :
- No
- Contact Type :
- Hairpin Bellows
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Body/Shell Style :
- Receptacle
- ECCN Code :
- EAR99
- Plating Thickness :
- 10μin
- Additional Feature :
- NONE
- HTS Code :
- 8536.69.40.40
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Card Thickness :
- 0.062 1.57mm
- Number of Positions/Bay/Row :
- 45
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Reliability :
- COMMERCIAL
- Card Type :
- Non Specified - Dual Edge
- Insertion Force-Max :
- 4.448 N
- Reference Standard :
- UL, CSA
- Published :
- 2003
- Gender :
- FEMALE
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Insulation Resistance :
- 5000000000Ohm
- Mount :
- Through Hole
- Number Of PCB Rows :
- 4
- Rated Current (Signal) :
- 1A
- Termination :
- Solder, Staggered
- Datasheets
- RZB45DHAS
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 90 Positions Polyphenylene Sulfide (PPS)
RZB45DHAS Overview
Materials were packaged in accordance with Tray's specifications.The mounting type Through Hole, Right Angle is recommended.Devices are connected to the computer using the connector socket Hairpin Bellows.There are additionally features of this chip: NONE
RZB45DHAS Features
RZB45DHAS Applications
There are a lot of Sullins Connector Solutions
RZB45DHAS Edgeboard Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
