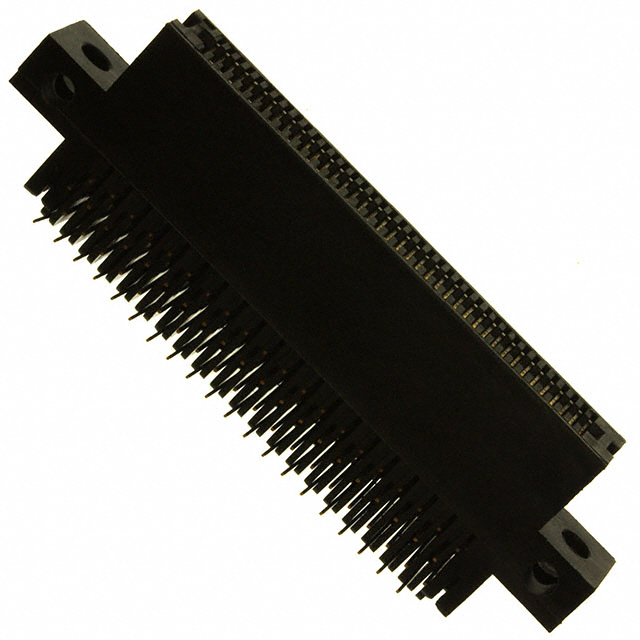

RZB40DHAS
Or copy the link below:
- Mfr.Part #
- RZB40DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.050
- Stock
- 8,753
- In Stock ：
- 8,753
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Contact Resistance :
- 30mOhm
- Contact Material :
- Phosphor Bronze
- Mount :
- Through Hole
- Contact Type :
- Hairpin Bellows
- Length :
- 72.1mm
- Height :
- 15.5mm
- Card Type :
- Non Specified - Dual Edge
- Read Out :
- Dual
- Number Of PCB Rows :
- 4
- Rated Current (Signal) :
- 1A
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Number of Rows :
- 2
- JESD-609 Code :
- e0
- Lead Free :
- Contains Lead
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Body Depth :
- 0.915 inch
- Width :
- 9.4mm
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Connector Type :
- Hairpin Bellows
- Body Breadth :
- 0.37 inch
- Contact Finish :
- Gold
- Number of Positions :
- 80
- Number of Conductors :
- ONE
- Pitch :
- 0.050 1.27mm
- Insertion Force-Max :
- 4.448 N
- Plating Thickness :
- 10μin
- Operating Temperature :
- -65°C~125°C
- Published :
- 2011
- Termination :
- Solder, Staggered
- Total Number of Contacts :
- 80
- Card Thickness :
- 0.062 1.57mm
- Additional Feature :
- NONE
- ECCN Code :
- EAR99
- Pbfree Code :
- No
- Housing Material :
- Plastic
- Insulation Resistance :
- 5000000000Ohm
- Reference Standard :
- UL, CSA
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Body/Shell Style :
- Receptacle
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Number of Positions/Bay/Row :
- 40
- Gender :
- FEMALE
- Datasheets
- RZB40DHAS
RZB40DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 80 Positions Polyphenylene Sulfide (PPS)
RZB40DHAS Overview
Materials were packaged in accordance with Tray's specifications.The mounting type Through Hole, Right Angle is recommended.Devices are connected to the computer using the connector socket Hairpin Bellows.There are additionally features of this chip: NONE
RZB40DHAS Features
RZB40DHAS Applications
There are a lot of Sullins Connector Solutions
RZB40DHAS Edgeboard Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
