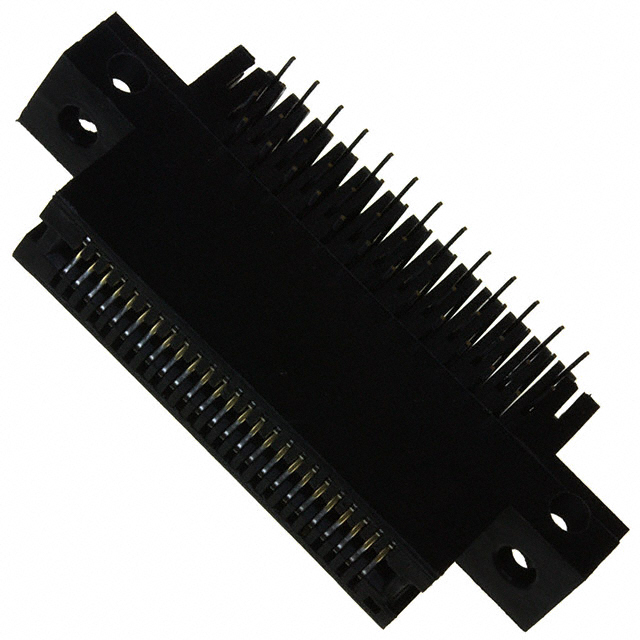

RZB25DHAS
Or copy the link below:
- Mfr.Part #
- RZB25DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 50POS 0.050
- Stock
- 49,339
- In Stock ：
- 49,339
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Lead Free :
- Contains Lead
- Contact Material :
- Phosphor Bronze
- Card Type :
- Non Specified - Dual Edge
- Contact Finish :
- Gold
- Number of Conductors :
- ONE
- Additional Feature :
- NONE
- Packaging :
- Tray
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Read Out :
- Dual
- Contact Resistance :
- 30mOhm
- Number of Positions :
- 50
- Length :
- 53.1mm
- Width :
- 9.4mm
- Body Breadth :
- 0.37 inch
- HTS Code :
- 8536.69.40.40
- Termination :
- Solder, Staggered
- Body Depth :
- 0.915 inch
- Color :
- Black
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Rated Current (Signal) :
- 1A
- Plating Thickness :
- 10μin
- RoHS Status :
- Non-RoHS Compliant
- ECCN Code :
- EAR99
- JESD-609 Code :
- e0
- Mounting Type :
- Through Hole, Right Angle
- Reference Standard :
- UL, CSA
- Operating Temperature :
- -65°C~125°C
- Number Of PCB Rows :
- 4
- Published :
- 2003
- Number of Rows :
- 2
- Total Number of Contacts :
- 50
- Height :
- 15.5mm
- Gender :
- FEMALE
- Pitch :
- 0.050 1.27mm
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Plastic
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pbfree Code :
- No
- Connector Type :
- Hairpin Bellows
- Mount :
- Through Hole
- Contact Type :
- Hairpin Bellows
- Body/Shell Style :
- Receptacle
- Number of Positions/Bay/Row :
- 25
- Reliability :
- COMMERCIAL
- Card Thickness :
- 0.062 1.57mm
- Insertion Force-Max :
- 4.448 N
- Datasheets
- RZB25DHAS
RZB25DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 50 Positions Polyphenylene Sulfide (PPS)
RZB25DHAS Overview
The material was packaged in accordance with Tray's specifications.We recommend mounting type Through Hole, Right Angle.Using the connector socket Hairpin Bellows is how the device is connected.The following additional features are included in this chip: NONE
RZB25DHAS Features
RZB25DHAS Applications
There are a lot of Sullins Connector Solutions
RZB25DHAS Edgeboard Connectors applications.
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
