RZB22DHAS

Share

Or copy the link below:

Mfr.Part #
RZB22DHAS
Manufacturer
Sullins Connector Solutions
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FMALE 44POS 0.050
Stock
49,809
In Stock :
49,809

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sullins Connector Solutions
Product Category :
Edgeboard Connectors
Mounting Type :
Through Hole, Right Angle
Published :
2003
Termination :
Solder, Staggered
Reference Standard :
UL, CSA
Connector Type :
Hairpin Bellows
Card Thickness :
0.062 1.57mm
Card Type :
Non Specified - Dual Edge
Mount :
Through Hole
Total Number of Contacts :
44
Number of Positions/Bay/Row :
22
JESD-609 Code :
e0
Width :
9.4mm
Contact Material :
Phosphor Bronze
Number of Conductors :
ONE
Rated Current (Signal) :
1A
Length :
49.3mm
Contact Type :
Hairpin Bellows
Color :
Black
Gender :
FEMALE
Pbfree Code :
No
Material - Insulation :
Polyphenylene Sulfide (PPS)
Additional Feature :
NONE
Operating Temperature :
-65°C~125°C
Number Of PCB Rows :
4
Height :
15.5mm
Number of Positions :
44
Read Out :
Dual
Contact Finish :
Gold
Flange Feature :
Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Contact Finish Thickness :
10.0μin 0.25μm
Reliability :
COMMERCIAL
Body Breadth :
0.37 inch
Plating Thickness :
10μin
Packaging :
Tray
Moisture Sensitivity Level (MSL) :
Not Applicable
Body/Shell Style :
Receptacle
Pitch :
0.050 1.27mm
Lead Free :
Contains Lead
Body Depth :
0.915 inch
Housing Material :
Plastic
Flammability Rating :
UL94 V-0
ECCN Code :
EAR99
HTS Code :
8536.69.40.40
Contact Resistance :
30mOhm
RoHS Status :
Non-RoHS Compliant
Insulation Resistance :
5000000000Ohm
Number of Rows :
2
Introducing Edgeboard Connectors Sullins Connector Solutions RZB22DHAS from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-65°C~125°C, RZB22DHAS pinout, RZB22DHAS datasheet PDF, RZB22DHAS amp .Beyond Edgeboard Connectors Sullins Connector Solutions RZB22DHAS ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

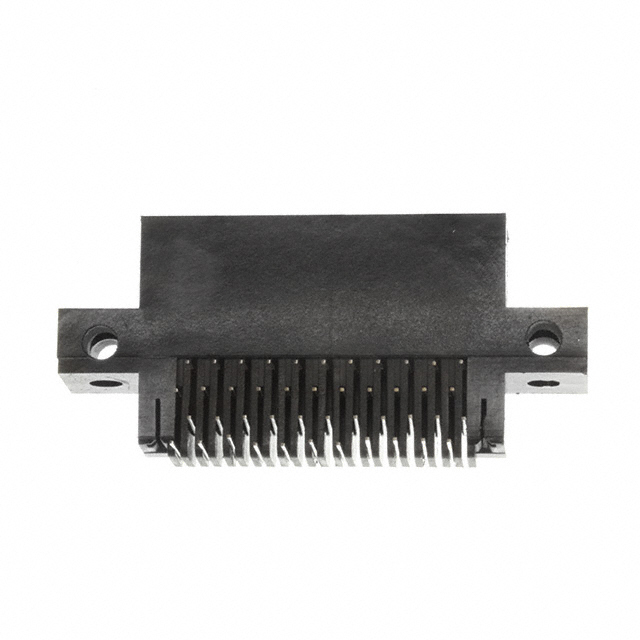

Sullins Connector Solutions RZB22DHAS


Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 44 Positions Polyphenylene Sulfide (PPS)

RZB22DHAS Overview


Materials were packaged according to Tray's specs.It is recommended that you mount the device using mounting type Through Hole, Right Angle.A connector socket Hairpin Bellows is used for connecting the device.This chip also offers the following additional features:

RZB22DHAS Features




RZB22DHAS Applications


There are a lot of Sullins Connector Solutions
RZB22DHAS Edgeboard Connectors applications.


  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
