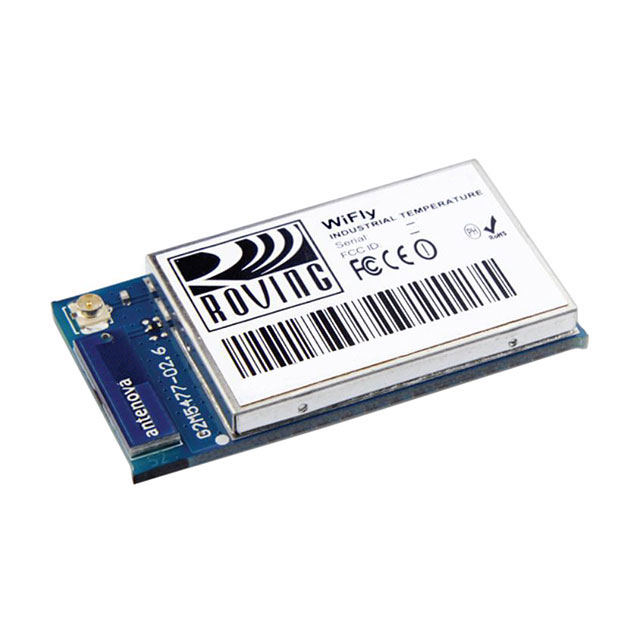

RN131G-I/RM481
Or copy the link below:
- Mfr.Part #
- RN131G-I/RM481
- Manufacturer
- Microchip Technology
- Package / Case
- 44-SMD Module
- Datasheet
- Download
- Description
- RX TXRX MOD WIFI CHIP + U.FL SMD
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- RF Transceiver Modules and Modems
- Sensitivity :
- -85dBm
- Antenna Type :
- Integrated, Chip + U.FL
- Surface Mount :
- yes
- Memory Size :
- 8MB Flash 128kB RAM
- Power - Output :
- 18dBm
- Protocol :
- 802.11b/g
- Output Power :
- 23.76 dBm
- Mounting Type :
- Surface Mount
- Product Category :
- WiFi Modules - 802.11
- Voltage - Supply :
- 3.3V
- Minimum Operating Temperature :
- - 30 C
- Base Product Number :
- RN131
- Telecom IC Type :
- WIRELESS LAN CIRCUIT
- Package / Case :
- 44-SMD Module
- Pin Count :
- 44
- Pbfree Code :
- yes
- Mounting :
- Screw
- ISM Band :
- Not Required
- Published :
- 2012
- RF Family/Standard :
- WiFi
- RoHS Status :
- ROHS3 Compliant
- Number of Functions :
- 1
- Base Part Number :
- RN131
- Modulation :
- CCK, DBPSK, DQPSK, DSSS, OFDM
- Product Height (mm) :
- 3.5(mm)
- Data Rate :
- 54Mbps
- JESD-30 Code :
- R-XQMA-N44
- Terminal Position :
- QUAD
- Dimensions :
- 37 mm x 20 mm x 3.5 mm
- Height Seated (Max) :
- 3.5mm
- Number of Terminations :
- 44
- Screening Level :
- COMMERCIAL
- Firmware Version :
- 4.81
- Interface Type :
- GPIO, SDIO, SPI, UART
- Modulation Type :
- DSSS/OFDM
- Rad Hardened :
- No
- Packaging :
- Tray
- Series :
- --
- Current - Transmitting :
- 140mA~212mA
- Subcategory :
- Wireless and RF Modules
- Operating Supply Voltage :
- 3,3 V
- Utilized IC / Part :
- --
- Brand :
- Microchip Technology
- RoHS :
- Details
- Frequency :
- 2.4GHz
- Supply Voltage :
- 3.3V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Product Depth (mm) :
- 20(mm)
- Manufacturer :
- Microchip
- Operating Temperature :
- -30°C~85°C
- Serial Interfaces :
- SPI, UART
- Number of Channels :
- 14
- Product Length (mm) :
- 37(mm)
- Product Type :
- WiFi Modules
- Maximum Operating Temperature :
- + 85 C
- Terminal Pitch :
- 2mm
- Antenna Connector Type :
- Chip, U.FL
- Factory Lead Time :
- 14 Weeks
- Length :
- 37mm
- Terminal Form :
- NO LEAD
- Current - Receiving :
- 40mA
- Package :
- Tray
- Width :
- 20mm
- Product Status :
- Active
- Datasheets
- RN131G-I/RM481
RN131G-I/RM481 Documents
2.4GHz WiFi -30°C~85°C 3.3V SPI, UART Tray Integrated, Chip + U.FL 54Mbps 18dBm 802.11b/g -85dBm 44-SMD Module
RN131G-I/RM481 Overview
As a RF Transceiver' mounting method, Surface Mount is used.Using the Tray package, this RF Transceiver module optimizes the performance of the RF Transceiver module 12v.A RF Transceiver module consists of 44 terminations.In order for it to operate properly, Transceiver's operating temperature should be at -30°C~85°C.RN131 is a family of high power Transceivers.A RF Transceiver Module, it is a member of the -- family.RF Transceivers that can supply 3.3V volts are available.A 2.4GHz frequency is used by the RF Transceiver Module.
RN131G-I/RM481 Features
Surface Mount
Tray package
44 terminations
RN131
3.3V volts
RN131G-I/RM481 Applications
There are a lot of Microchip Technology
RN131G-I/RM481 RF Transceiver Modules applications.
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
- Thermostats
