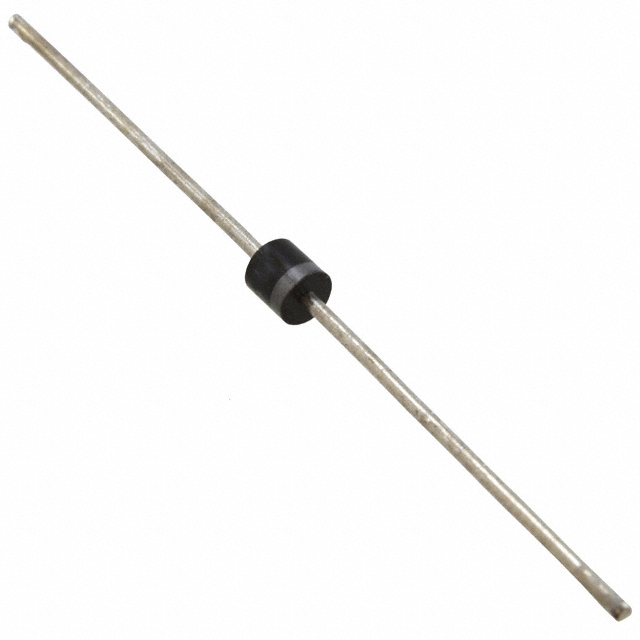

RL251-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Rectifiers - Single

Pin Count :

2

Non-rep Pk Forward Current-Max :

150A

Application :

GENERAL PURPOSE

Number of Phases :

1

Number of Elements :

1

Surface Mount :

No

Operating Temperature - Junction :

-55°C~150°C

Qualification Status :

Not Qualified

Package / Case :

R-3, Axial

Packaging :

Tape and Reel (TR)

Diode Type :

Standard

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Output Current-Max :

2.5A

Speed :

Standard Recovery >500ns, > 200mA (Io)

Number of Terminations :

2

HTS Code :

8541.10.00.80

Pbfree Code :

yes

Terminal Form :

Wire

Reach Compliance Code :

Compliant

Current - Reverse Leakage @ Vr :

5µA @ 50V

Rep Pk Reverse Voltage-Max :

50V

JESD-30 Code :

O-PALF-W2

Configuration :

Single

Voltage - DC Reverse (Vr) (Max) :

50V

JESD-609 Code :

e3

Voltage - Forward (Vf) (Max) @ If :

1V @ 2.5A

RoHS Status :

RoHS Compliant

Terminal Finish :

Matte Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

ECCN Code :

EAR99

Diode Element Material :

SILICON

Published :

1996

Case Connection :

Isolated

Current - Average Rectified (Io) :

2.5A

Capacitance @ Vr, F :

35pF @ 4V 1MHz

Mounting Type :

Through Hole
