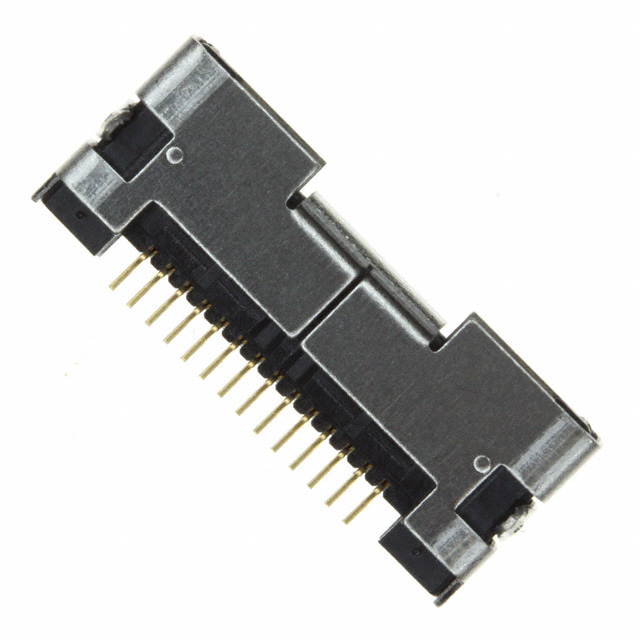

RL01-R14PE
Or copy the link below:
- Mfr.Part #
- RL01-R14PE
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 14P 0.031 GOLD SMD R/A
- Stock
- 47,970
- In Stock ：
- 47,970
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Feature :
- Board Guide, Shielded
- Insulation Material :
- Polyphenylene Sulfide (PPS)
- Packaging :
- Tray
- Published :
- 2004
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Pitch - Mating :
- 0.031 0.80mm
- Fastening Type :
- Friction Lock
- Contact Finish Thickness - Mating :
- Flash
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- Pitch :
- 787.4μm
- Contact Plating :
- Gold
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 14
- Style :
- Board to Cable/Wire
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- RL01/RL01S/RL02S
- Connector Type :
- Receptacle
- Insulation Height :
- 0.114 2.90mm
- Contact Finish - Post :
- Tin
- Mounting Type :
- Surface Mount, Right Angle
- Contact Type :
- Center Strip Contact
- Lead Free :
- Lead Free
- Datasheets
- RL01-R14PE
RL01-R14PE Documents
1 Rows Receptacle Solder Copper Alloy Surface Mount, Right Angle Tray Gold Polyphenylene Sulfide (PPS) 14 Positions Center Strip Contact
RL01-R14PE Overview
The product is packaged in Receptacle.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the RL01/RL01S/RL02S Series.There are a number of advantages to its Board Guide, Shielded feature.Part Surface Mount is mounted to the part.
RL01-R14PE Features
RL01/RL01S/RL02S series
RL01-R14PE Applications
There are a lot of JAE Electronics
RL01-R14PE Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
