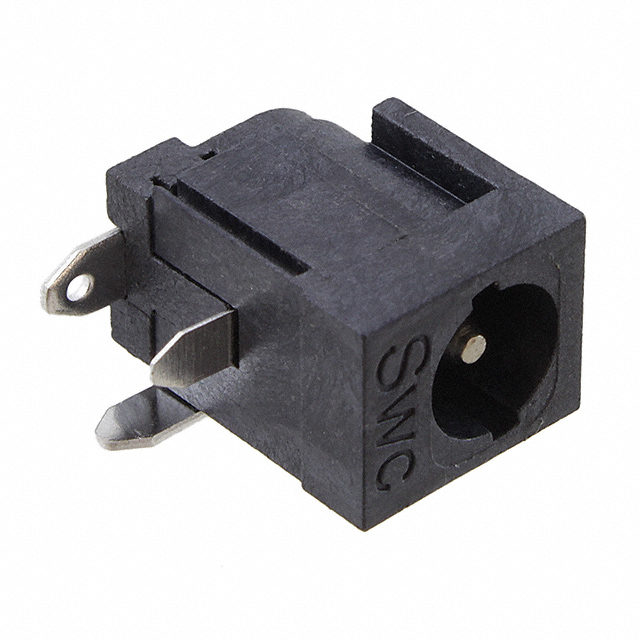

RAPC722BK
Or copy the link below:
- Mfr.Part #
- RAPC722BK
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 2X5.5MM SOLDER
- Stock
- 1,375
- In Stock ：
- 1,375
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Power Connectors
- Current Rating :
- 5A
- MIL Conformance :
- No
- Max Current Rating :
- 5A
- Packaging :
- Bulk
- Contact Material :
- Brass
- Housing Material :
- Thermoplastic
- Internal Switch(s) :
- Single Switch, Normally Closed
- Length :
- 9.4mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 8 Weeks
- Connector Type :
- JACK
- Contact Material - Plating :
- Silver
- Contact Plating :
- Nickel, Tin
- Industry Recognized Mating Diameter :
- 2.00mm ID (0.079), 5.50mm OD (0.217)
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- REACH SVHC :
- No SVHC
- Depth :
- 14.5mm
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Contains Lead
- Option :
- GENERAL PURPOSE
- Number of Terminations :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Mount :
- Through Hole
- Width :
- 10.9mm
- Termination :
- Solder Eyelet(s)
- Gender :
- Male
- Published :
- 2005
- Actual Diameter :
- 0.079 (2.00mm ID), 0.248 (6.30mm OD)
- Number of Ports :
- 1
- Rated Current (Power) :
- 5A
- Shielding :
- Unshielded
- IEC Conformance :
- No
- Voltage - Rated AC :
- 250V
- Body Color :
- Black
- Orientation :
- RIGHT ANGLE
- Datasheets
- RAPC722BK
