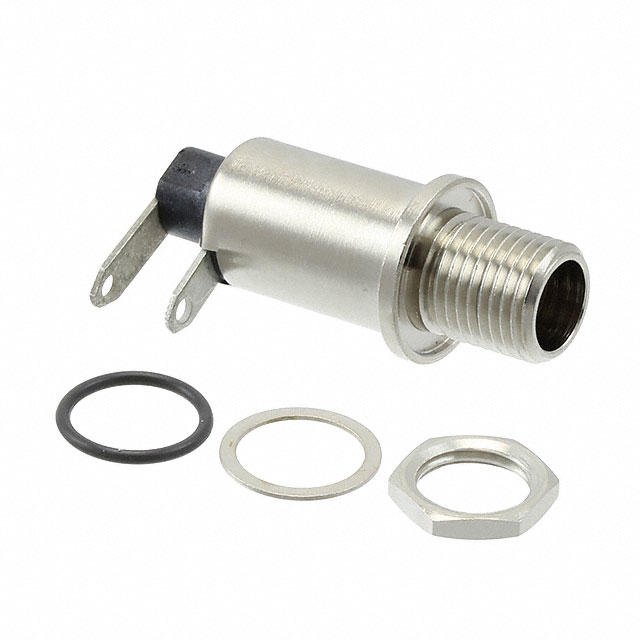

RAPC10U
Or copy the link below:
- Mfr.Part #
- RAPC10U
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN POWER JACK SOLDER EYELET
- Stock
- 3,771
- In Stock ：
- 3,771
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Power Connectors
- HTS Code :
- 8536.69.40.20
- Shielding :
- Unshielded
- Mounting Feature :
- Bulkhead - Front Side Nut
- Operating Temperature :
- -40°C~105°C
- Contact Material :
- COPPER ALLOY
- Number of Positions/Contacts :
- 2 Conductors, 2 Contacts
- Actual Diameter :
- 0.076 (1.93mm ID), 0.226 (5.75mm OD)
- Packaging :
- Bulk
- Mount :
- Panel, Through Hole
- ECCN Code :
- EAR99
- Current Rating :
- 13A
- Orientation :
- RIGHT ANGLE
- Current Rating (Amps) :
- 10A
- Published :
- 2014
- Voltage - Rated :
- 24VAC/DC
- Termination :
- Solder Eyelet(s)
- Mounting Type :
- Panel Mount
- Housing Material :
- Thermoplastic
- Body Material :
- COPPER ALLOY
- Industry Recognized Mating Diameter :
- 2.00mm ID (0.079), 5.50mm OD (0.217)
- Thread Size :
- 5/16-32
- Ratings :
- IP66
- Includes :
- 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
- Length :
- 28.97mm
- Contact Material - Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- Male
- Contact Plating :
- Gold, Silver, Tin
- Insulation Resistance :
- 1GOhm
- Contact Gender :
- FEMALE
- Factory Lead Time :
- 14 Weeks
- Connector Type :
- JACK
- Body Color :
- Silver, Black
- RoHS Status :
- ROHS3 Compliant
- Internal Switch(s) :
- Does Not Contain Switch
- Feature :
- Mounting Hardware
- Datasheets
- RAPC10U
