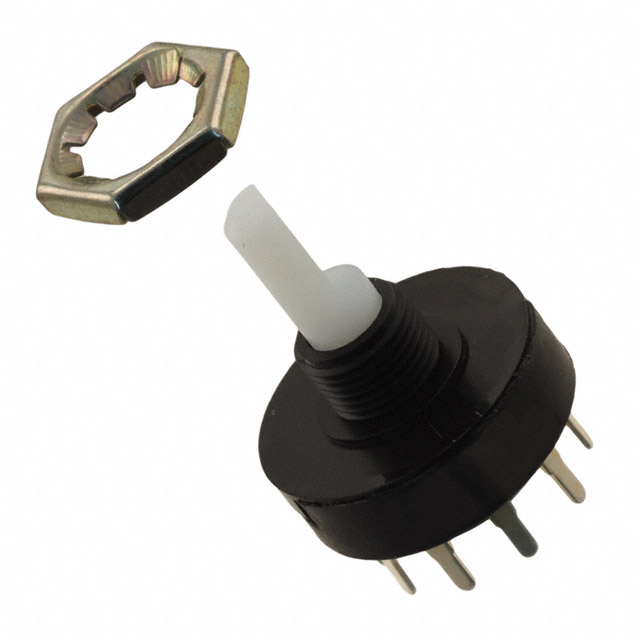

R20407RR02Q
Or copy the link below:
- Mfr.Part #
- R20407RR02Q
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 4POS 5A 125V
- Stock
- 143
- In Stock ：
- 143
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Mount :
- PCB, Panel, Through Hole
- Contact Finish :
- Silver
- Number of Positions :
- 4
- Min Operating Temperature :
- -30°C
- Circuit per Deck :
- DP4T
- Current Rating :
- 5A
- Max Current Rating :
- 5A
- Actuator Type :
- Flatted (6.35mm Dia)
- Max Operating Temperature :
- 95°C
- Orientation :
- Straight
- REACH SVHC :
- No SVHC
- Contact Timing :
- Non-Shorting (BBM)
- Depth :
- 23.37mm
- Termination Style :
- PC Pin
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Contact Style :
- Non-Shorting
- Number of Decks :
- 1
- Index Stops :
- FIXED
- Voltage - Rated DC :
- 125V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 125V
- Radiation Hardening :
- No
- Published :
- 2013
- Max Voltage Rating (DC) :
- 125V
- Actuator Material :
- Nylon
- Current Rating (Amps) :
- 5A AC 500mA DC
- Contact Material :
- Copper
- Length :
- 23.37mm
- Index Angle :
- 36 °
- Electrical Life :
- 10000 Cycles
- Termination :
- PC Pins
- Series :
- R
- Actuator Length :
- 12.70mm
- Number of Poles per Deck :
- 2
- Max Voltage Rating (AC) :
- 250V
- Factory Lead Time :
- 16 Weeks
- Mounting Type :
- Panel Mount, Through Hole
- RoHS Status :
- ROHS3 Compliant
- Depth Behind Panel :
- 10.29mm
- Datasheets
- R20407RR02Q
