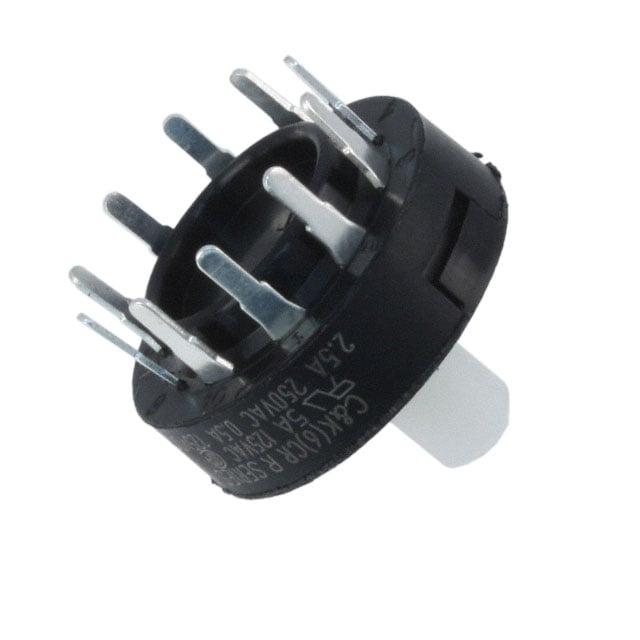

R20405RN02Q

Manufacturer :

C&K

Product Category :

Number of Positions :

4

Radiation Hardening :

No

Max Voltage Rating (DC) :

125V

Termination :

PC Pins

Termination Style :

PC Pin

Max Operating Temperature :

95°C

Current Rating (Amps) :

5A AC 500mA DC

Electrical Life :

10000 Cycles

Circuit per Deck :

DP4T

Number of Poles per Deck :

2

Contact Timing :

Non-Shorting (BBM)

Contact Material :

Copper

Max Current Rating :

5A

Voltage - Rated AC :

125V

Mounting Type :

Through Hole

Contact Finish :

Silver

Index Stops :

FIXED

Actuator Material :

Nylon

Depth Behind Panel :

10.29mm

Throw Configuration :

DP, DP4T

Number of Decks :

1

Index Angle :

36 °

Voltage - Rated DC :

125V

Orientation :

Straight

Published :

2014

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Depth :

23.37mm

Min Operating Temperature :

-30°C

Actuator Type :

Flatted (6.35mm Dia)

Actuator Length :

9.53mm

Current Rating :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

R

Mount :

Through Hole

Factory Lead Time :

16 Weeks

Length :

23.37mm

Contact Style :

Non-Shorting

Max Voltage Rating (AC) :

250V
