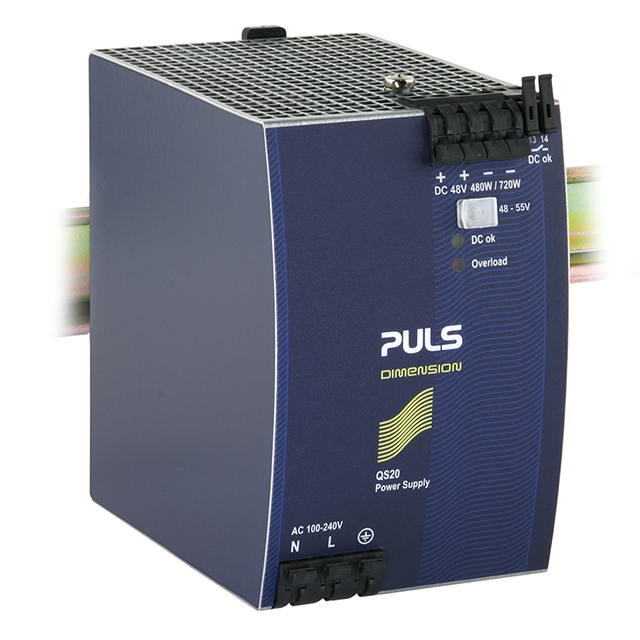

QS20.481

Manufacturer :

PULS

Product Category :

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Output Voltage :

48V

Applications :

Hazardous Locations, ITE (Commercial)

Power (Watts) :

480W

Weight :

1.2kg

Max Input Voltage :

240V

Terminal Form :

UNSPECIFIED

Max Output Voltage :

55V

Number of Outputs :

1

Min Input Voltage :

100V

Moisture Sensitivity Level (MSL) :

Not Applicable

Type :

Enclosed

Input Voltage-Nom :

100V

Feature :

Adjustable Output, Load Sharing, PFC

Voltage - Input :

85V~276VAC 88V~187VDC

Trim/Adjustable Output :

yes

Efficiency :

94.3%

Series :

DIMENSION Q (480W)

Total Power Output-Max :

480W

Factory Lead Time :

2 Weeks

Terminal Position :

UNSPECIFIED

Depth :

24mm

Size / Dimension :

5.00Lx3.23W x 4.88 H 127.0mmx82.0mmx124.0mm

Min Output Voltage :

48V

Pbfree Code :

yes

Voltage - Isolation :

500V

Current - Output 1 :

10A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Output Current :

10A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Terminations :

10

Mounting Type :

DIN Rail

Number of Functions :

1

Operating Temperature :

-10°C~70°C With Derating

Mount :

DIN Rail

RoHS Status :

RoHS Compliant
