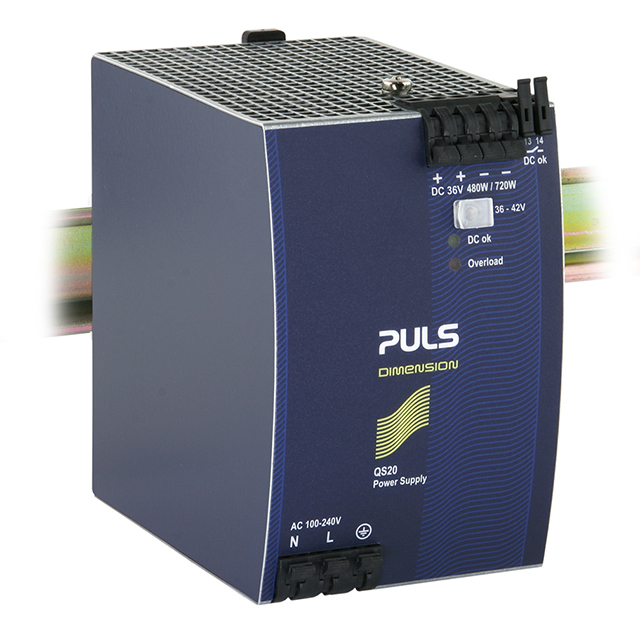

QS20.361

Manufacturer :

PULS

Product Category :

Factory Lead Time :

2 Weeks

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Functions :

1

Terminal Position :

UNSPECIFIED

Type :

Enclosed

Terminal Form :

UNSPECIFIED

Voltage - Isolation :

500V

Voltage - Input :

85V~276VAC

Min Output Voltage :

36V

Input Voltage-Nom :

100V

Mounting Type :

DIN Rail

Feature :

Adjustable Output, Load Sharing, PFC

Max Input Voltage :

240V

RoHS Status :

RoHS Compliant

Trim/Adjustable Output :

yes

Min Input Voltage :

100V

Mount :

DIN Rail

Efficiency :

94%

Power (Watts) :

480W

Moisture Sensitivity Level (MSL) :

Not Applicable

Operating Temperature :

-10°C~70°C With Derating

Weight :

1.2kg

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-30 Code :

R-XXMA-X9

Output Current :

13.3A

ECCN Code :

EAR99

Size / Dimension :

5.00Lx3.23W x 4.88 H 127.0mmx82.0mmx124.0mm

Number of Terminations :

9

Max Output Voltage :

42V

Current - Output (Max) :

13.3A

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Number of Outputs :

1

Total Power Output-Max :

480W

Depth :

24mm

Applications :

Hazardous Locations, ITE (Commercial)

Series :

DIMENSION Q (480W)

Output Voltage :

36V
