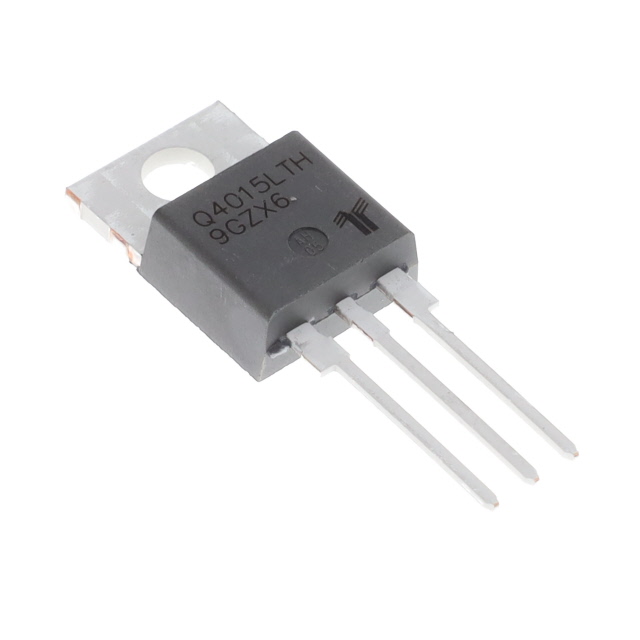

Q4015LTHTP

Manufacturer :

Littelfuse

Product Category :

Thyristors - TRIACs

Pbfree Code :

No

Leakage Current (Max) :

2mA

Additional Feature :

High Reliability

Pin Count :

3

Critical Rate of Rise of Off-State Voltage-Min :

700V/us

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Holding Current-Max :

70mA

Number of Elements :

1

Voltage - Off State :

400V

Series :

Teccor®

Operating Temperature :

-40°C~125°C TJ

Reach Compliance Code :

not_compliant

Critical Rate of Rise of Commutation Voltage-Min :

30V/us

Trigger Device Type :

TRIAC WITH INT TRIGGER

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

16 Weeks

Number of Terminations :

3

JESD-30 Code :

R-PSFM-T3

Current - On State (It (RMS)) (Max) :

4A

HTS Code :

8541.30.00.80

Triac Type :

Internally Triggered, Standard

Repetitive Peak Off-state Voltage :

400V

Qualification Status :

Not Qualified

Time@Peak Reflow Temperature-Max (s) :

10

Package / Case :

TO-220-3 Isolated Tab

Peak Reflow Temperature (Cel) :

260

Configuration :

Single

Terminal Finish :

Matte Tin (Sn)

Current - Hold (Ih) (Max) :

70mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

46A 55A

Surface Mount :

No

Published :

2008

JEDEC-95 Code :

TO-220AB

Mounting Type :

Through Hole

JESD-609 Code :

e3
