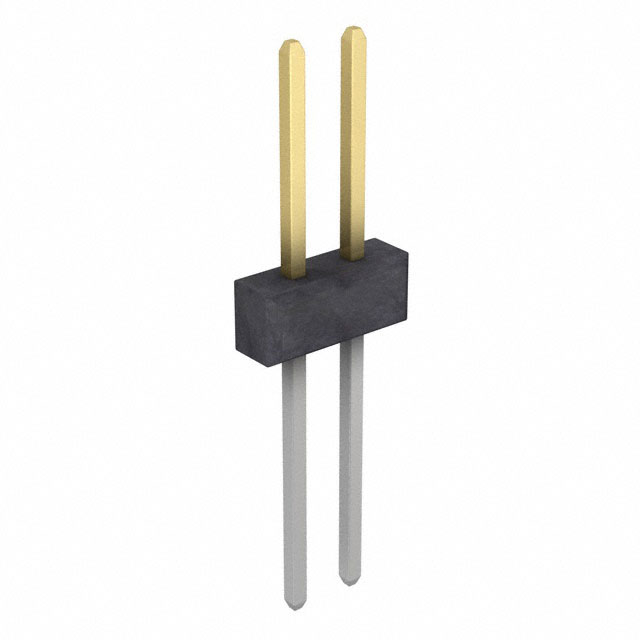

PZC01DFDN
Or copy the link below:
- Mfr.Part #
- PZC01DFDN
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 48,603
- In Stock ：
- 48,603
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Overall Contact Length :
- 0.838 21.29mm
- Number of Positions :
- 2
- ECCN Code :
- EAR99
- Insulation Material :
- Thermoplastic, Polyester
- Contact Shape :
- Square
- Reference Standard :
- UL, CSA
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Insulation Resistance :
- 5000000000Ohm
- Number of Rows :
- 2
- Fastening Type :
- Push-Pull
- Housing Color :
- Black
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- Gender :
- Male
- Number Of PCB Rows :
- 2
- Mount :
- Through Hole
- Shrouding :
- Unshrouded
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Current Rating (Amps) :
- 3A
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions Loaded :
- All
- Published :
- 2003
- Number of Conductors :
- ONE
- Body Depth :
- 0.1 inch
- JESD-609 Code :
- e0
- Pbfree Code :
- No
- Housing Material :
- Plastic
- Style :
- Board to Board or Cable
- Termination :
- Solder
- Width :
- 5.08mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Height :
- 2.54mm
- Dielectric Withstanding Voltage :
- 600VDC V
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Contains Lead
- Length :
- 2.54mm
- HTS Code :
- 8536.69.40.40
- RoHS Status :
- Non-RoHS Compliant
- Contact Length - Mating :
- 0.318 8.08mm
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.420 10.67mm
- Insulation Height :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Plating Thickness :
- 10μin
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Mounting Type :
- Through Hole
- Datasheets
- PZC01DFDN
2-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic, Polyester 2-Position Board to Board or Cable 0.100 2.54mm Height
PZC01DFDN Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.Through Hole mounts the part.
PZC01DFDN Features
PZC01DFDN Applications
There are a lot of Sullins Connector Solutions
PZC01DFDN Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
