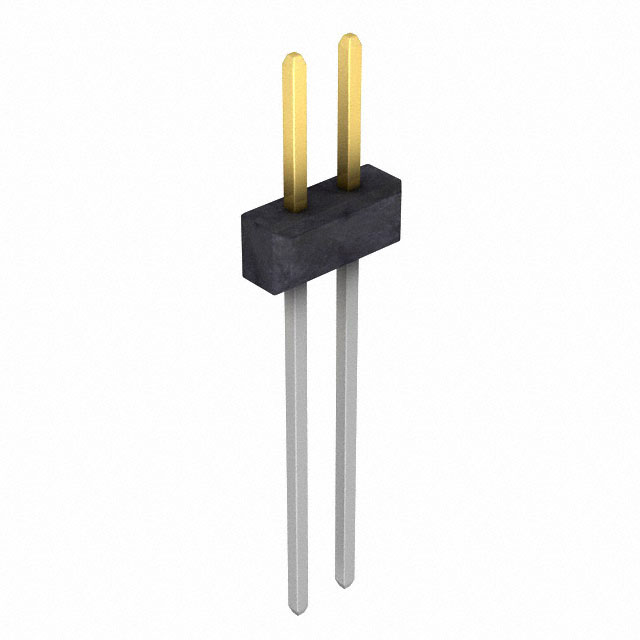

PZC01DAFN

Manufacturer :

Sullins Connector Solutions

Product Category :

Headers, Male Pins

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Pbfree Code :

No

Connector Type :

Header

Mount :

Through Hole

Height :

2.54mm

Number Of PCB Rows :

2

Overall Contact Length :

0.950 24.13mm

Number of Positions :

2

HTS Code :

8536.69.40.40

Contact Finish Thickness - Mating :

10.0μin 0.25μm

Contact Length - Post :

0.620 15.75mm

Operating Temperature (Min) :

-65°C

Plating Thickness :

10μin

Fastening Type :

Push-Pull

Operating Temperature (Max) :

135°C

Reference Standard :

UL, CSA

Housing Color :

Black

Number of Rows :

2

Contact Finish Thickness - Post :

100.0μin 2.54μm

Packaging :

Bulk

Insulation Height :

0.100 2.54mm

Lead Free :

Contains Lead

Moisture Sensitivity Level (MSL) :

Not Applicable

Row Spacing - Mating :

0.100 (2.54mm)

Contact Length - Mating :

0.230 5.84mm

Gender :

Male

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Shrouding :

Unshrouded

Contact Material :

COPPER ALLOY

Length :

2.54mm

Number of Positions Loaded :

All

Dielectric Withstanding Voltage :

600VDC V

Contact Finish - Post :

Tin

Housing Material :

Plastic

Current Rating (Amps) :

3A

Contact Shape :

Square

Style :

Board to Board or Cable

Width :

5.08mm

Contact Resistance :

30mOhm

JESD-609 Code :

e0

Number of Conductors :

ONE

ECCN Code :

EAR99

Contact Finish - Mating :

Gold

RoHS Status :

Non-RoHS Compliant

Mating Contact Pitch :

0.1 inch

Insulation Material :

Thermoplastic, Polyester

Contact Type :

Male Pin

Published :

2003

Insulation Resistance :

5000000000Ohm
